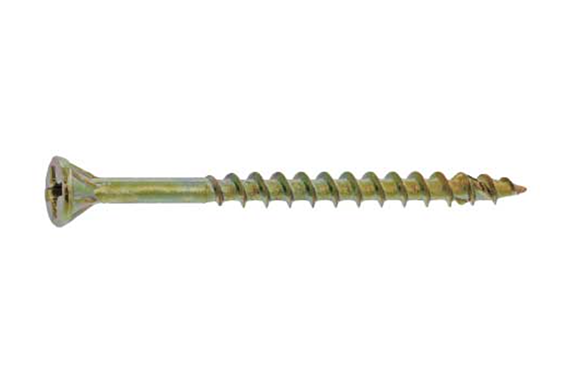

63-041T (+) Tapix Slim D6
Model: 63-041T
Dia range:M3.3～M3.8
Length range:25～90
Iron (or standard), SUS410.
Plain, Zinc yellow cr6+, Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black,…
Steel

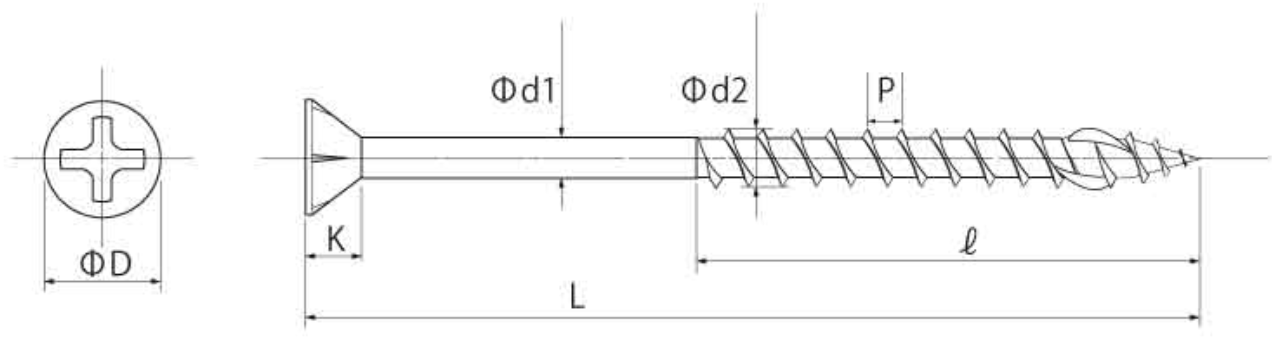

| Size | Length (L) | Screw Diameter (d) | Head Diameter (D) | d1 | d2 | Pitch (P) | K Size | Color |
|---|---|---|---|---|---|---|---|---|
| 3.3×25 | 25 | 20 | 6.0 | 2.30 | 3.3 | 12 | 3.6 | Chromate |
| 3.3×32 | 32 | 25 | 6.0 | 2.30 | 3.3 | 12 | 3.6 | Gold |
| 3.3×38 | 38 | 25 | 6.0 | 2.30 | 3.3 | 12 | 3.6 | Chromate |
| 3.3×45 | 45 | 32 | 6.0 | 2.30 | 3.3 | 12 | 3.6 | Gold |
| 3.3×50 | 50 | 32 | 6.0 | 2.30 | 3.3 | 12 | 3.6 | Chromate |
| 3.8×57 | 57 | 32 | 7.2 | 2.72 | 3.8 | 11 | 3.6 | Gold |
| 3.8×65 | 65 | 50 | 7.5 | 2.72 | 3.8 | 11 | 3.6 | Chromate |
| 3.8×75 | 75 | 50 | 7.5 | 2.72 | 3.8 | 11 | 3.6 | Gold |
| 3.8×90 | 90 | 50 | 7.5 | 2.72 | 3.8 | 11 | 3.6 | Chromate |
SUS410
| Size | Length (L) | Screw Diameter (d) | Head Diameter (D) | d1 | d2 | Pitch (P) | K Size |
|---|---|---|---|---|---|---|---|
| 3.3×25 | 25±1.5 | 20±1.5 | 6.0±0.1 | 2.3±0.05 | 3.3±0.2 | 12 | 3.1±0.2 |
| 3.3×30 | 30±1.5 | 25±1.5 | 6.1±0.1 | 2.3±0.05 | 3.3±0.2 | 12 | 3.1±0.2 |
| 3.3×35 | 35±1.5 | 28±1.5 | 6.1±0.1 | 2.3±0.05 | 3.3±0.2 | 12 | 3.1±0.2 |
| 3.3×40 | 40±1.5 | 32±1.5 | 6.1±0.1 | 2.3±0.05 | 3.3±0.2 | 12 | 3.1±0.2 |
| 3.3×45 | 45±1.5 | 32±1.5 | 6.1±0.1 | 2.3±0.05 | 3.3±0.2 | 12 | 3.1±0.2 |
| 3.3×50 | 50±1.5 | 32±1.5 | 6.1±0.1 | 2.3±0.05 | 3.3±0.2 | 12 | 3.1±0.2 |
