SUNCO

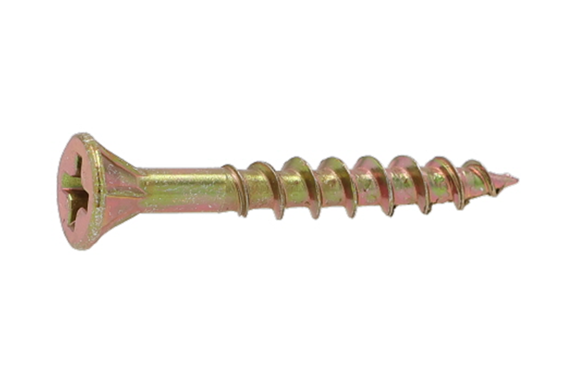

63-8470 LIVE Slim Fine Thread Screw
Model: 63-8470
Dia range:M3.3～M3.9
Length range:25～90
Iron (or standard).
Zinc yellow cr6+.
Unit: mm

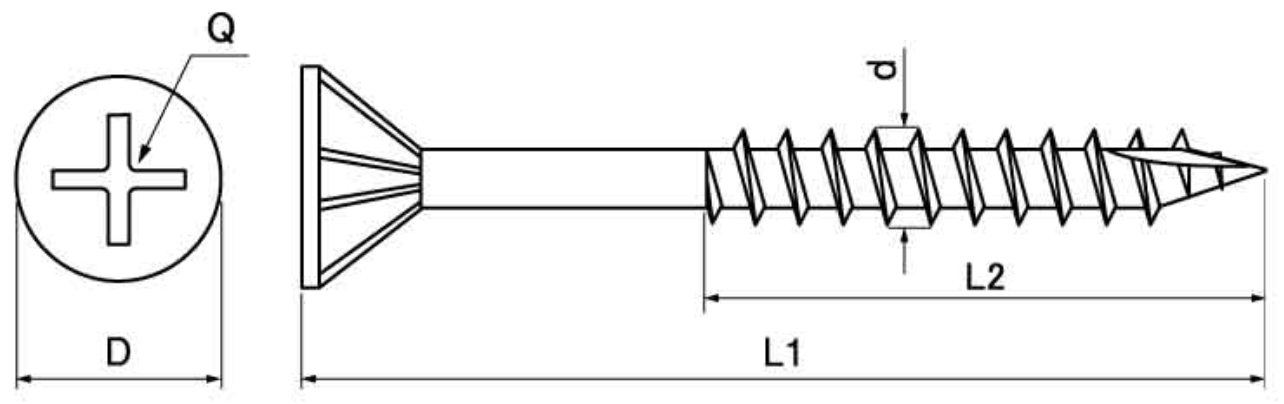

| Diameter × Length (d × L1) | Thread Pitch | Thread Length L2 | Head Diameter D | Phillips Drive | Thread / Tip Shape |
|---|---|---|---|---|---|
| 3.3 × 25 | 1.95 | 17 | 6.0 | No.2 | Coarse / Sharp Tip (with Cut) |
| 3.3 × 30 | 1.95 | 20 | 6.0 | No.2 | |
| 3.3 × 35 | 1.95 | 22 | 6.0 | No.2 | |
| 3.3 × 40 | 1.95 | 26 | 6.0 | No.2 | |
| 3.3 × 45 | 1.95 | 30 | 6.0 | No.2 | |
| 3.3 × 50 | 1.95 | 35 | 6.0 | No.2 | |
| 3.8 × 55 | 2.31 | 38 | 7.0 | No.2 | |
| 3.8 × 60 | 2.31 | 40 | 7.0 | No.2 | |
| 3.8 × 65 | 2.31 | 45 | 7.0 | No.2 | |
| 3.8 × 70 | 2.31 | 50 | 7.0 | No.2 | |
| 3.8 × 75 | 2.31 | 55 | 7.0 | No.2 | |
| 3.9 × 90 | 2.54 | 60 | 7.0 | No.2 |
