SUNCO

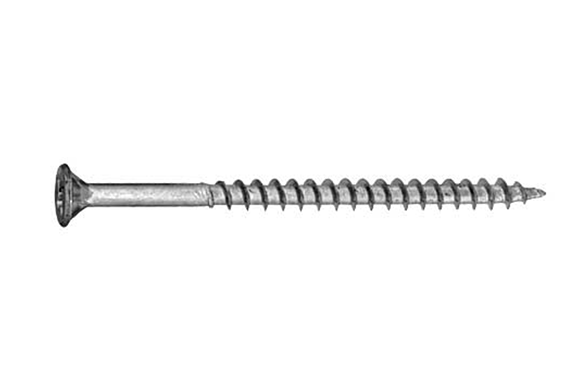

63-S47T Slim Screw (Import (Value))
Model: 63-S47T
Dia range:M3.3～M3.9
Length range:25～90
Iron (or standard).
Zinc yellow cr6+, Trivalent zinc cr+3 color white.

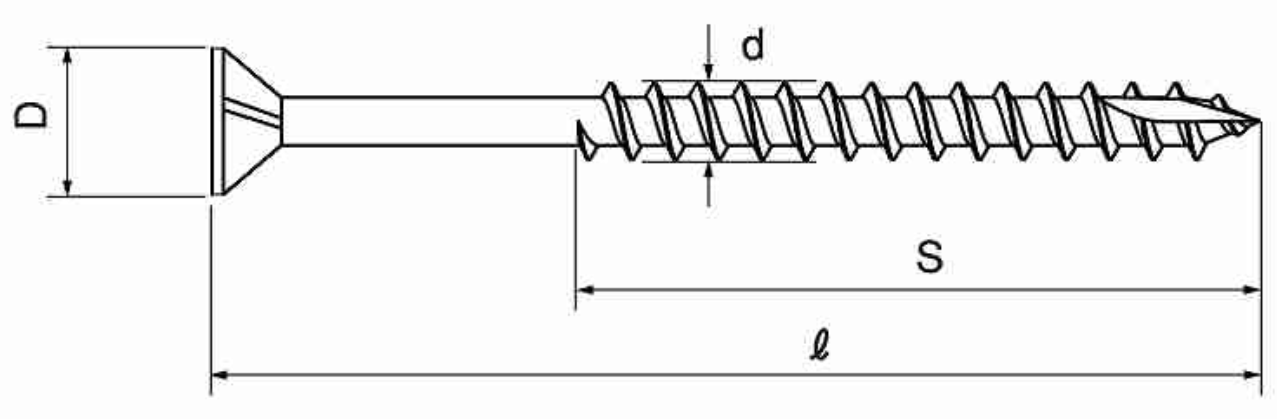

| Size | Head Diameter (D) | Thread Diameter (d) | Thread Length (S) |
|---|---|---|---|
| 3.3×25 | 6 | 3.3 | 19 |
| 3.3×30 | 6 | 3.3 | 23 |
| 3.3×35 | 6 | 3.3 | 25 |
| 3.3×40 | 6 | 3.3 | 30 |
| 3.3×45 | 6 | 3.3 | 30 |
| 3.3×50 | 6 | 3.3 | 35 |
| 3.7×55 | 7 | 3.7 | 40 |
| 3.7×60 | 7 | 3.7 | 40 |
| 3.7×65 | 7 | 3.7 | 45 |
| 3.7×70 | 7 | 3.7 | 50 |
| 3.7×75 | 7 | 3.7 | 50 |
| 3.9×90 | 7 | 3.9 | 60 |
