SUNCO

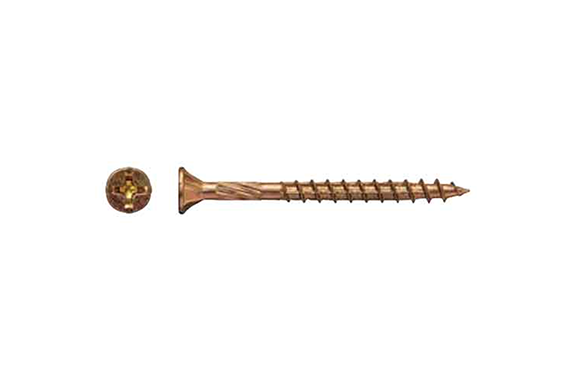

63-SP1B Power Thread (Slim Type (PCS))
Model: 63-SP1B
Dia range:M3.7～M3.7
Length range:65～75
Iron (or standard).
Zinc yellow cr6+.
Unit: mm

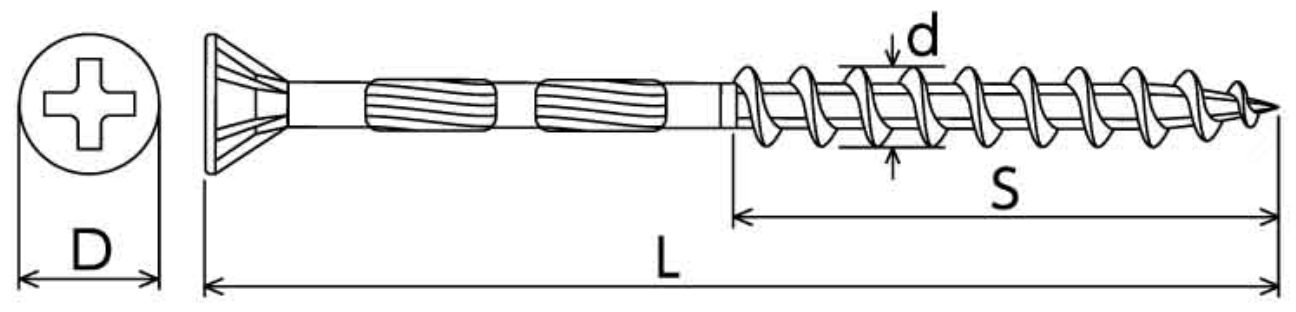

| Product Code | Thread Type | Nominal Diameter (d) | Total Length (L) | Head Diameter (D) | Thread Length (S) |
|---|---|---|---|---|---|
| Fine AP-38 Small | Half Thread | 3.4 | 38 | 6.1 | 25.0 |
| Fine AP-50 Small | Half Thread | 3.4 | 50 | 6.1 | 25.0 |
| Fine AP-65 Small | Half Thread | 3.7 | 65 | 7.0 | 33.0 |
| Fine AP-75 Small | Half Thread | 3.7 | 75 | 7.0 | 38.0 |
