SUNCO
70-A400 6-Lobe Slim Head 310
Model: 70-A400
Dia range:M2～M6
Length range:3～40
Iron (or standard), Stainless Steel (303, 304, XM7,…), Aluminum (AL).
Plain, Nickel, Trivalent zinc cr+3 color white, GB (Brown Bronze),…

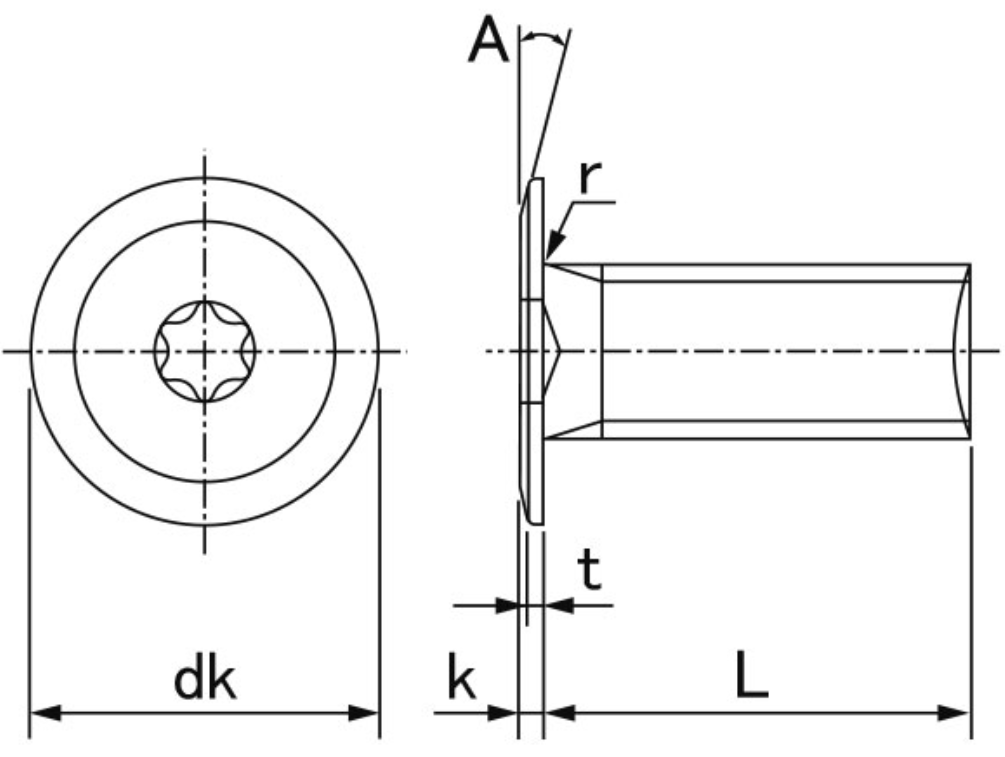

| M2 | M2.6 | M3 | M4 | M5 | M6 | |
|---|---|---|---|---|---|---|
| dk | 4 | 6 | 7 | 8 | 9 | 12 |
| k | 0.5 | 0.6 | 0.8 | 0.9 | 1.0 | 1.2 |
| t | 0.4 | 0.5 | 0.75 | 0.9 | 1.0 | 1.2 |
| Drive | T4 | T5 | T6 | T8 | T10 | T20 |
| A | 30° | 30° | 30° | 30° | 30° | 30° |
| Minimum breaking torque | 0.4 N·m | 0.5 N·m | 0.95 N·m | 2.3 N·m | 4 N·m | 10 N·m |
