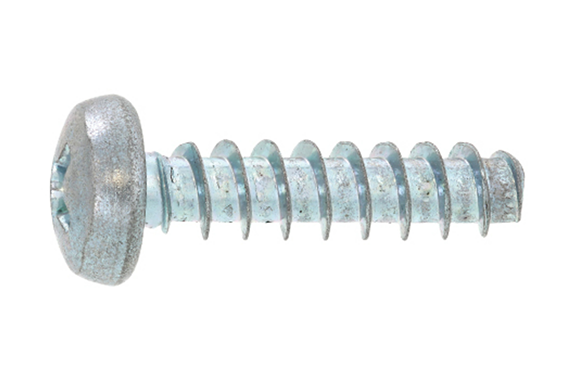

70-N000 Non-Sert Pan Head
Model: 70-N000
Dia range:M1.4～M6
Length range:3～25
Iron (or standard), Stainless steel (303, 304,…).
Plain, Trivalent zinc cr3+ color black, Trivalent zinc cr3+ color white, BK (SUS black oxide), black nickel.
Iron / Trivalent Chromate Plating (ISO Standard Pan Head)
| Nominal Screw Diameter | 2 | 2.5 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|
| Head Outer Diameter (dk) | 4 | 5 | 5.6 | 8 | 9.5 | 12 |
| Head Height (k) | 1.6 | 2.1 | 2.4 | 3.1 | 3.7 | 4.6 |
| Cross Recess Number | 0 | 1 | 1 | 2 | 2 | 3 |
Iron / Black Nickel Plating
| Nominal Screw Diameter | 1.4 | 1.6 |
|---|---|---|
| Head Outer Diameter (dk) | 2.5 | 3 |
| Head Height (k) | 0.5 | 0.5 |
| Cross Recess Number | 0 | 0 |
Stainless Steel (JIS Standard Pan Head)
| Nominal Screw Diameter | 3 | 4 |
|---|---|---|
| Head Outer Diameter (dk) | 5.5 | 7 |
| Head Height (k) | 2.0 | 2.6 |
| Cross Recess Number | 2 | 2 |
