SUNCO

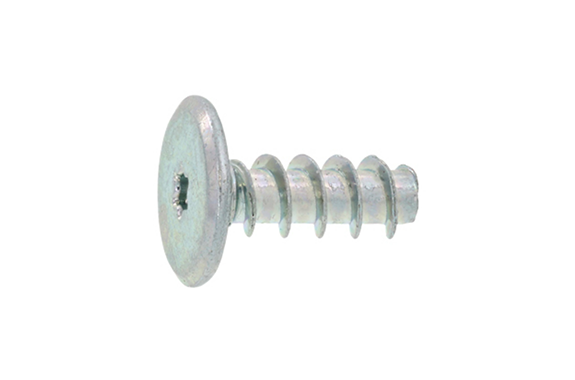

70-N600 Non-Sert Slim Head
Model: 70-N600
Dia range:M3～M5
Length range:6～12
Iron (or standard).
Trivalent zinc cr3+ color black, Trivalent zinc cr3+ color white, Nickel.
Unit: mm

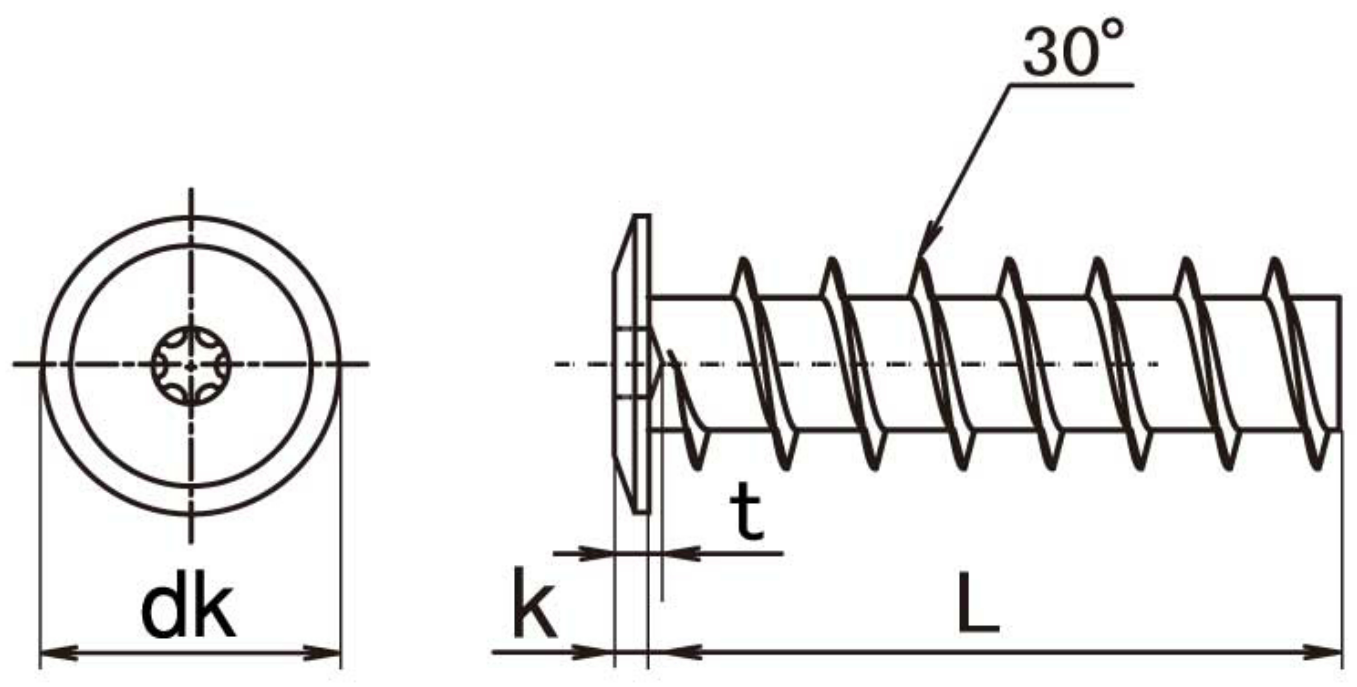

| Nominal Size (d) | Head Outer Diameter dk | Head Height k | Recess Depth t | TRX Drive Size |
|---|---|---|---|---|
| 3 | 7 | 0.8 | 0.5 | T6 |
| 4 | 8 | 0.9 | 0.5 | T8 |
| 5 | 9 | 1.0 | 0.6 | T10 |
