SUNCO

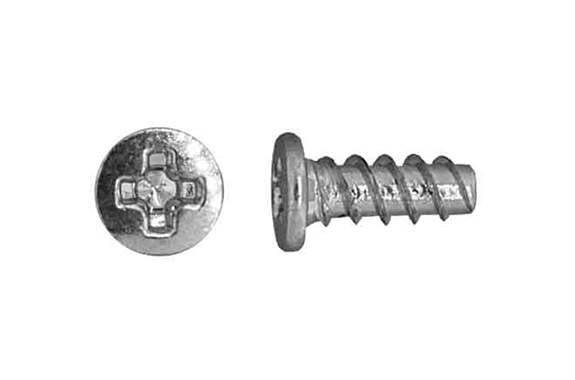

72-320C Totsupura P type CYL Head D4
Model: 72-320C
Dia range:M2.3～M2.3
Length range:6～8
Iron (or standard).
Trivalent zinc cr3+ color white.

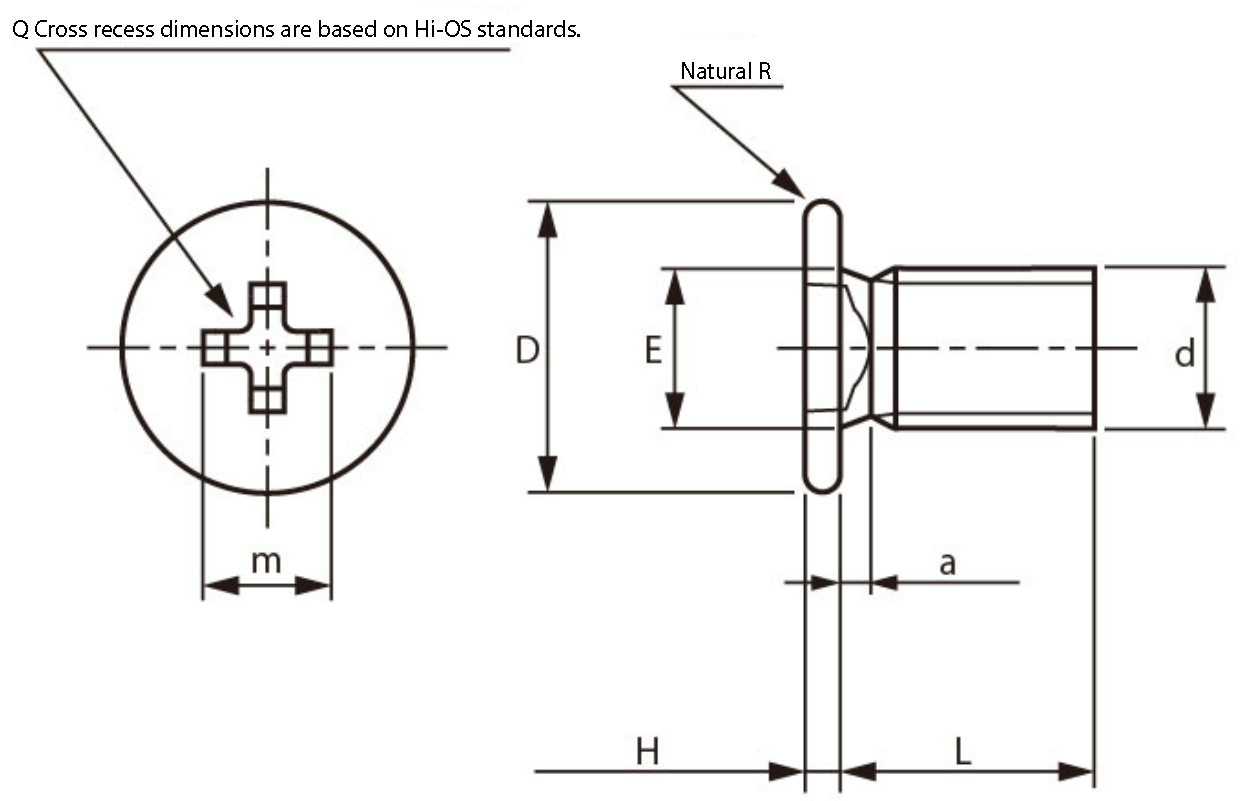

| Nominal Thread d | D | H | L | Q | m | Under-head Dimension | Totsuplabit ※ Model No. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | Standard Dimension | Tolerance | a | (ΦE) | ||||
| 2.3 | 4.0 | 0 -0.4 | 0.7 | ±0.1 | 4.0~10.0 | 0 -0.8 | 0.65~1.01 | (2.2) | (0.5) | (2.5) | TH54-20-60K |
※JIS #1 bit can also be used.
