SUNCO

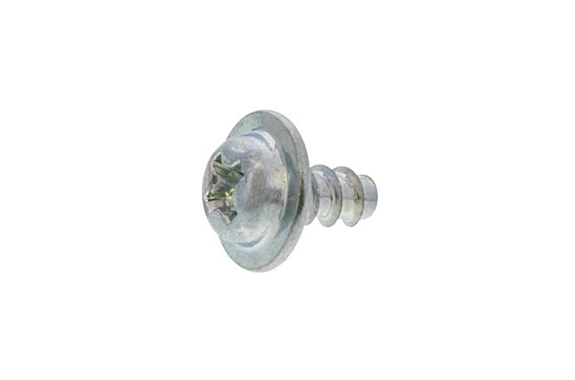

75-4000 Plafitt
Model: 75-4000
Dia range:M3～M3
Length range:6～6
Iron (or standard).
Trivalent zinc cr+3 color white.

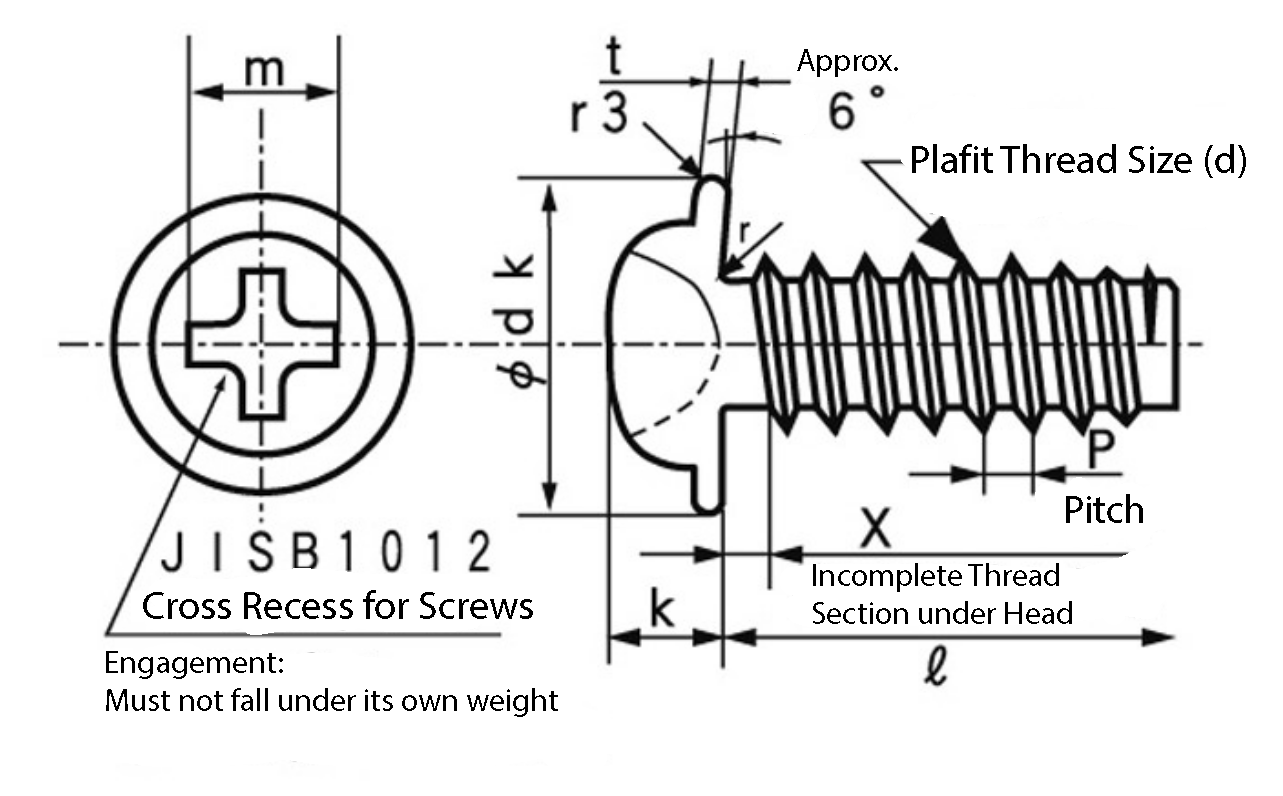

| Thread Nominal Diameter (d) | 2 | 2.6 | 3 | 4 | ||
|---|---|---|---|---|---|---|
| ⌀ dk | Standard Dimension | 5 | 6.5 | 8 | 10 | |
| Tolerance | 0 -0.4 | 0 -0.4 | 0 -0.4 | 0 -0.5 | ||
| k | Standard Dimension | 1.7 | 2.1 | 2.5 | 3.2 | |
| Tolerance | ±0.15 | ±0.15 | ±0.2 | ±0.2 | ||
| t | Standard Dimension | 0.4 | 0.4 | 0.6 | 0.6 | |
| Tolerance | +0.1 0 | +0.1 0 | ±0.2 | ±0.2 | ||
| r3 | Approx. | 0.1 | 0.1 | 0.15 | 0.2 | |
| Cross recess | m | Approx. | 2.2 | 2.6 | 3,6 | 4.2 |
| Depth g | Max | 1.01 | 1.42 | 1.43 | 2.03 | |
| Min | 0.60 | 1.00 | 0.86 | 1.45 | ||
| Cross recess number | 1 | 1 | 2 | 2 | ||
| r | Max | 0.3 | 03 | 0.4 | 0.5 | |
| X | Max | 0.79 | 1.06 | 1.27 | 1.59 | |
| E | Max | 0.15 | 0.2 | 0.25 | 0.3 | |
| F | Max | 0.1 | 0.15 | 0.2 | 0.2 | |
| G | Max | 2° | 2° | 2° | 2° | |
| P | Pitch | 0.79 | 1.06 | 1.27 | 1.59 | |
