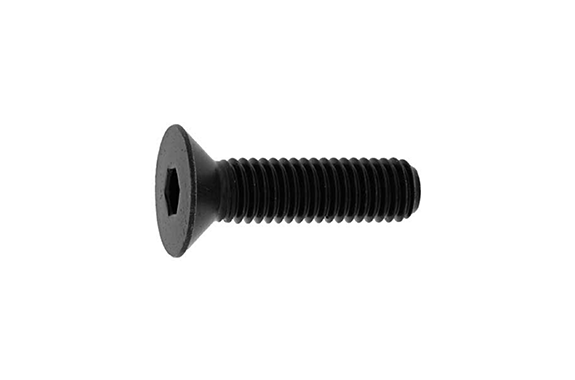

A0-200K Hex-Socket Flat (Kyokuto JIS)
Model: A0-200K
Dia range:M3～M16
Length range:8～60
Iron (or standard).
Plain, Zinc blue cr6+, Black nickel.
(Unit: mm)

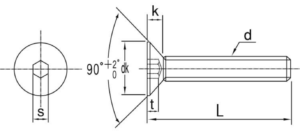

| Nominal Diameter | dk | k | S | t | ||
|---|---|---|---|---|---|---|
| d | Maximum (Theoretical Dimension) | Minimum (Actual Dimension) | Maximum | Standard Dimension | Tolerance | Minimum |
| M3 | 6.72 | 5.54 | 1.86 | 2.0 | +0.06 +0.02 | 1.1 |
| M4 | 8.96 | 7.53 | 2.48 | 2.5 | +0.08 +0.02 | 1.5 |
| M5 | 11.20 | 9.43 | 3.1 | 3.0 | 1.9 | |
| M6 | 13.44 | 11.34 | 3.72 | 4.0 | +0.095 +0.02 | 2.2 |
| M8 | 17.92 | 15.24 | 4.96 | 5.0 | +0.14 +0.02 | 3.0 |
| M10 | 22.4 | 19.22 | 6.2 | 6.0 | 3.6 | |
| M12 | 26.88 | 23.12 | 7.44 | 8.0 | +0.175 +0.025 | 4.3 |
| M16 | 33.6 | 29.01 | 8.8 | 10.0 | 4.8 | |
