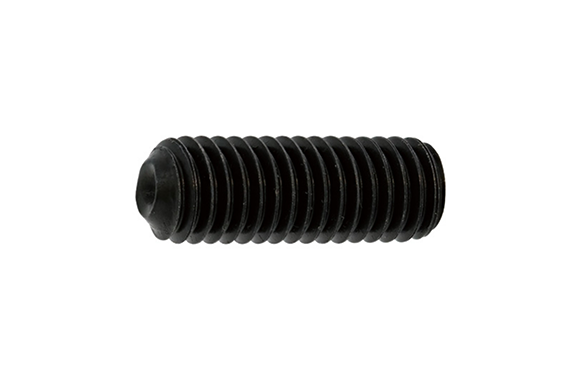

A0-5000 Hex-S Set Screws (Cup Point)
Model: A0-5000
Dia range:M1.4～M36
Length range:1.5～200
Iron (or standard), Stainless steel (303, 304,…), Titanium (Ti), SUS316L.
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…
Unit: mm

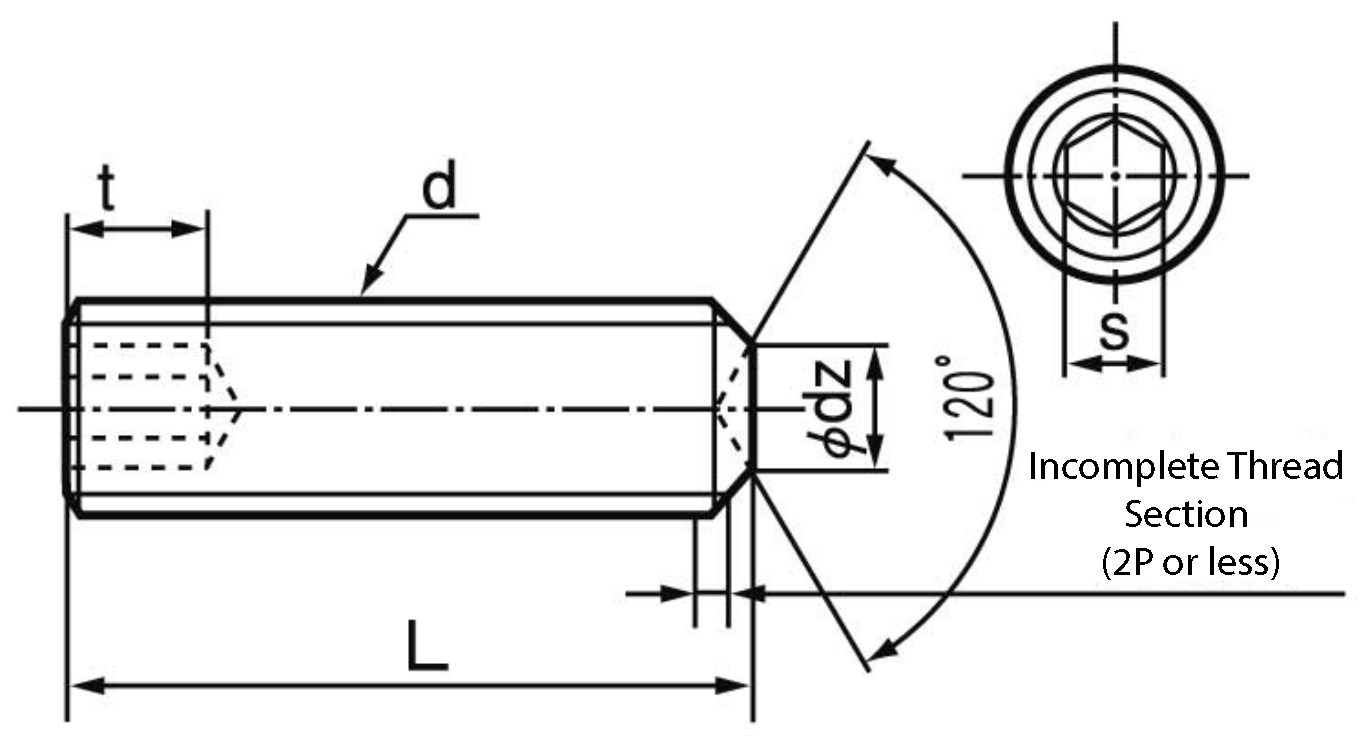

| Thread Nominal Diameter (d) | M1.4 | M1.6 | M2 | M2.5 (M2.6) | M3 | M4 | M5 | M6 | M8 | MIO | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M30 | M36 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pitch | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1.0 | 1.25 | 1.5 | 1.75 | 2.0 | 2.0 | 2.5 | 2.5 | 2.5 | 3.0 | 3.5 | 4.0 | |
| s | Nominal | 0.7 | 0.7 | 0.9 | 1.3 | 1.5 | 2 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 | 6.0 | 8.0 | 8.0 | 10 | 12 | 12 | 14 | 17 |
| t | Minimum | 0.7 | 0.7 | 0.8 | 1.2 | 1.2 | 1.5 | 2.0 | 2.0 | 3.0 | 4.0 | 4.8 | 3.5 | 6.4 | 6.4 | 8 | 8 | 10 | 8 | 7 |
※Stainless steel (SUS) is available from M1.4 to M20, and steel from M1.6 to M36.
※Sizes M30 and above are manufacturer-specific standards.
