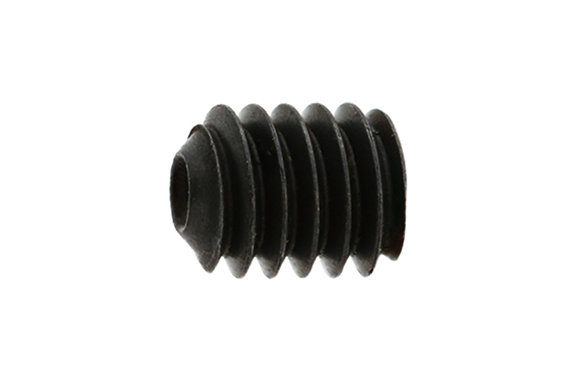

A0-500P Hex-S Set S (Cup-P (Unbrako))
Model: A0-500P
Dia range:M2.5～M2.5
Length range:3～3
Iron (or standard).
Plain.
| Nominal Diameter | Pitch | d | D | Recessed Tip | W | Tightening Torque (Nm) | ||
|---|---|---|---|---|---|---|---|---|
| J | T | |||||||
| max. | min. | max. | min. | min. | nom. | |||
| M2.5 | 0.45 | 2.48 | 2.38 | 1.75 | 1.2 | 1.8 | 1.27 | 0.57 |

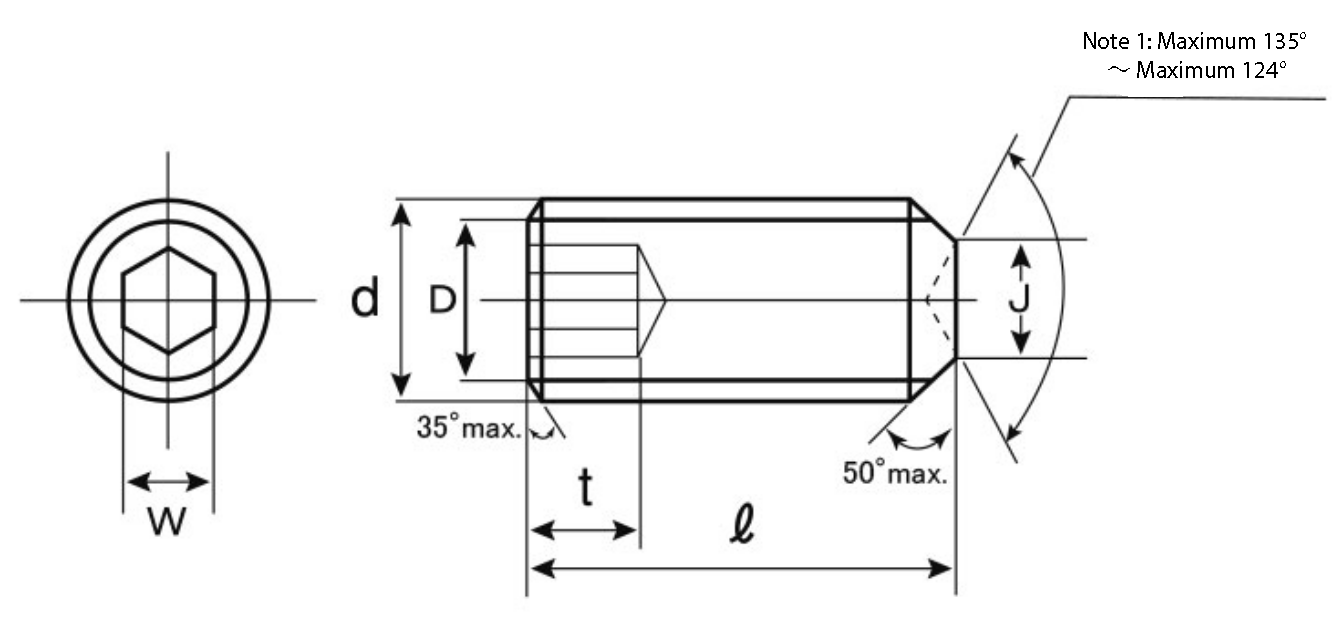

Note 1:
If the length is the same as the diameter or shorter, the maximum angle is 135°.
If the length is longer than the diameter, the maximum angle is 124°.
For M3 and above, the tip of the thread follows standard specifications, and the recessed tip is not commonly manufactured.
