SUNCO
A0-L200 Slim Head Screw 6-Lobe
Model: A0-L200
Dia range:M2～M6
Length range:4～40
Iron (or standard), Stainless Steel (303, 304, XM7,…).
Plain, Nickel, Black Nickel.

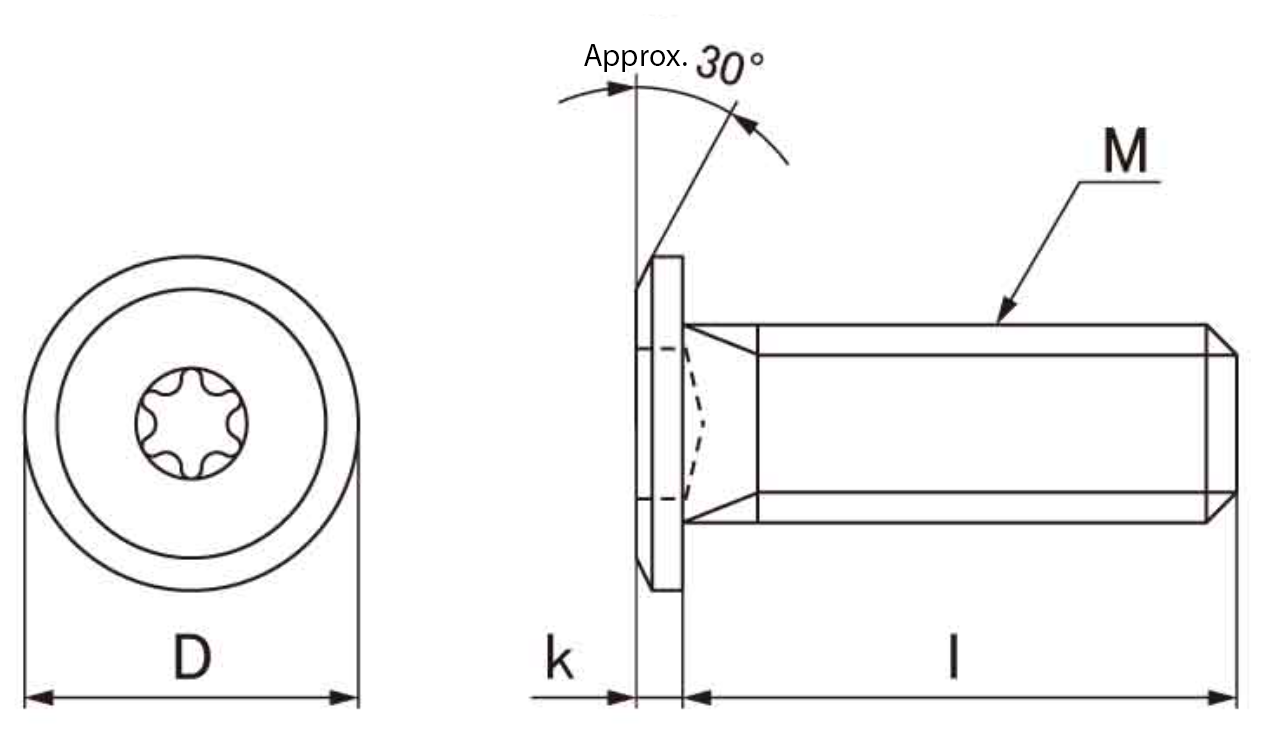

| M | M2 | M2.6 | M3 | M4 | M5 | M6 | |
|---|---|---|---|---|---|---|---|
| Head Height | K ± 0.1 | 0.5 | 0.6 | 0.8 | 0.9 | 1.0 | 1.2 |
| Head Diameter (D) | D – 0.5 | 4.0 | 6.0 | 7.0 | 8.0 | 9.0 | 12 |
| Drive Size | T4 | T5 | T6 | T8 | T10 | T20 | |
