Ai Electronics Engineering V-01-AN3L Analog Display Type Thermal Anemometer

Manufacturer: Ai Electronics Engineering Co., Ltd.
Model: V-01-AN3 (Wind Speed / Temperature)

Features

An analog meter that makes it easy to visually observe air movement.
Powered by a built-in Ni-Cd battery or an AC adapter.
Compliant with JIS standard T8202.

Applications

● Building air conditioning facility management (from office buildings to schools, museums, etc.)
● Obligation to measure wind speed 　in local exhaust systems based on the Industrial Safety and Health Act
● Air conditioning management for clean rooms and greenhouses
● Comfortable energy-saving management for factories
● Ventilation measurement to prevent sick house syndrome
● Measurement inside ducts, wind tunnel experiments

Specifications

Wind Speed	Fluid to be measured	Normal air (non-air requires correction)
	Measurement range	0.05 to 2.00, 2.0 to 20.0 m/s (2 ranges manually switched)
	Measurement accuracy	±(3%+0.05m/s) in a 23±5℃ environment
	Temperature Compensation Range	+5 to 80°C
Temperature	Measurement range	-10 to +100°C
	Measurement accuracy	±0.5℃
Operating environment		+5～+40℃
power supply		Built-in NiCad rechargeable battery or AC adapter
Dimensions/Weight		220(w) × 120(h) × 110(d) / 1.6kg
Sensor Probe		φ8 × 180mm (3m cable)
accessories		Main unit, sensor probe, static pressure adapter, shoulder strap AC adapter, AA battery, instruction manual, test report

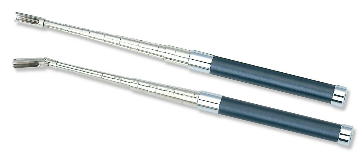

option		Extension expansion joint (EX-1, EX-2), Traceability calibration certificate
