Airmatic

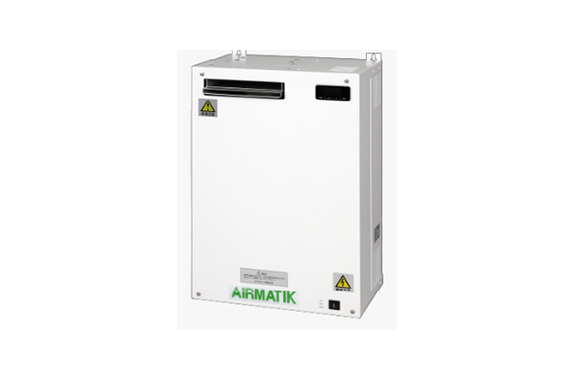

Airmatic Direct-blow Fan Integrated Electrode-type Steam Humidifier (MINISTEAM)

Manufacturer: Airmatic Co., Ltd.
Features
MiniSteam is an electrode-type steam humidifier that directly humidifies the room by generating pure steam using regular city or tap water. It provides hygienic and smooth humidification for the room.
The information is easy to understand at a glance. You can check the humidifier’s operating status anytime with simple symbols and numbers displayed on the LED screen. You can also switch the display contents intuitively, and a lock function prevents misoperation.
MiniSteam uses highly durable components. The high-quality parts, with a proven track record in electrode steam humidifiers, ensure long-term use with minimal maintenance. For instance, the electrode plates, made of stainless steel, offer excellent durability.
The steam cylinder is removable, allowing you to clean and reuse it. This eliminates the need for disposal after every maintenance session, supporting the 3R (Reduce, Reuse, Recycle) initiative to reduce waste.
The design focuses on easing maintenance. The internal structure makes upkeep simple, and especially the steam cylinder, which can be separated in the middle, simplifying the cleaning process.
Specification
| Humidifier model | MSF-5 |
| Maximum humidification amount | 5kg/h |
| Maximum humidification adjustable range | 25-100% |
| Airflow rate | 66m3/h |
| Power supply voltage | AC200V 3φ 50/60Hz |
| Power consumption | 3.8kW |
| Body dimensions | Width 390mm |
| Depth 255mm | |
| Height 595mm | |
| empty mass | 16kg |
| Mass when full | 21kg |
| Ambient temperature and humidity conditions | 5 to 40°C (no freezing) 75% RH or less (no condensation) |
| Water supply pressure | 0.1 to 0.3 MPa |
| Water supply conditions/water quality | City water or equivalent (12.5-40mS/m) 4-60°C (no freezing) |
| Standard accessories | Drain hose, water supply blade tube, L-shaped strainer, body mounting screws |
