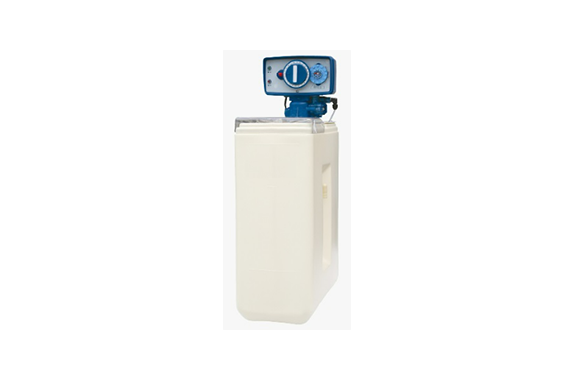

Airmatic DS Series Small-scale Soft Water Production Unit

Manufacturer: Airmatic Co., Ltd.
Model: DS Series

Features

Ion exchange resin is used to completely remove hardness components from raw water.
You can repeatedly collect and regenerate soft water using only table salt, allowing you to use it for a long period of time.
The DS-JN and DS-JM models are fully automatic water softeners that automatically perform the four processes of “backwashing,” “salt water injection,” “extrusion,” and “washing and salt-dissolved water injection” using a cam-type timer by simply adding salt.
Regeneration settings can be adjusted using a dial (in intervals of 1 to 12).
The DS-FJN and DS-FJM models do not require regeneration time settings.
Simply input the raw water hardness and the amount of water used will be automatically measured and regenerated, preventing excess salt consumption.
Furthermore, a built-in button battery will prevent time lag even during a power outage.
If operation stops for six minutes for any reason, a signal will be output externally.

Model	DS-3JN DS-3FJN	DS- 6JN DS- 6FJN	DS-12JN DS-12FJN	DS-18JM DS-18FJM	DS-28JM DS-28FJM
Body dimensions	Width 215mm x Depth 417mm x Height 509mm	Width 195mm x Depth 400mm x Height 665mm	Width 280mm x Depth 500mm x Height 818mm	Width 280mm x Depth 500mm x Height 1095mm	Width 280mm x Depth 500mm x Height 1095mm
Resin amount	3L	6L	12L	18L	28L
Maximum flow rate	240L/H	360L/H	750L/H	1100L/H	1750L/H
Water intake (at 45 ppm)	2000L/1 regeneration	6000L/1 regeneration	12000L/1 regeneration	18000L/1 regeneration	28000L/1 regeneration
Operating Weight	15kg (including 3kg of salt)	38kg (including 10kg of salt)	61kg (including 10kg of salt)	96kg (including 30kg of salt)	110kg (including 30kg of salt)
The water intake volume in the table above is for when the total hardness of the source water is 45 ppm. The water intake volume will vary depending on the total hardness of the raw water. Water supply pressure range: 0.15 to 0.5 MPa DS-JN and DS-JM models require 100V AC (3VA at all times). DS-FJN and DS-FJM models require 100V AC (3VA at all times, 6VA during regeneration).
