AirTAC SR Series Regulator
Product Made in Japan
Manufacturer: AirTAC Co., Ltd.
Model: SR Series
Product Feature
- Panel support can be chosen for the installation of the regulator with independent use in the pipeline.
- The structure is delicate and compact, which is convenient for installation and application.
- The performance of pressure adjustment is reliable and steady.
- In addition to the standard type, a lower pressure type is optional (The highest adjustable pressure is 0.4 MPa).
Specification
| Model | SR200-06 | SR200-06L | SR200-08 | SR200-08L |
|---|---|---|---|---|
| Fluid | Air | |||
| Port size [Note1] | 1/8″ | 1/4″ | ||
| Pressure range | Standard type: 0.05~0.9MPa (7~130psi) ; Lower pressure type: 0.03-0.4MPa (4~57psi) | |||
| Max. pressure | 1.0MPa (145psi) | |||
| Proof pressure | 1.5MPa (215psi) | |||
| Temperature range | -20~70°C | |||
Ordering Code
Flow Chart

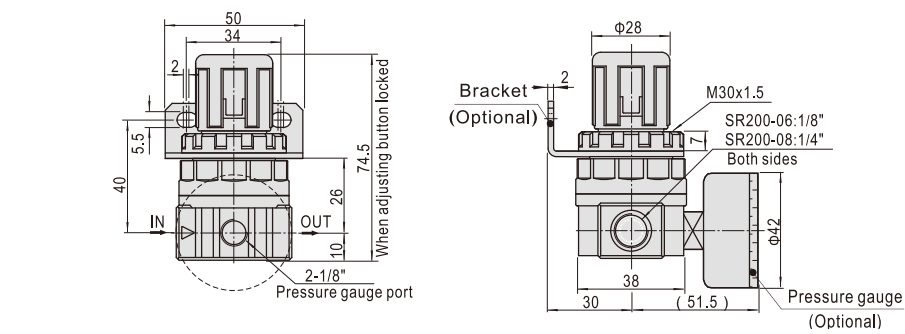

Dimensions
