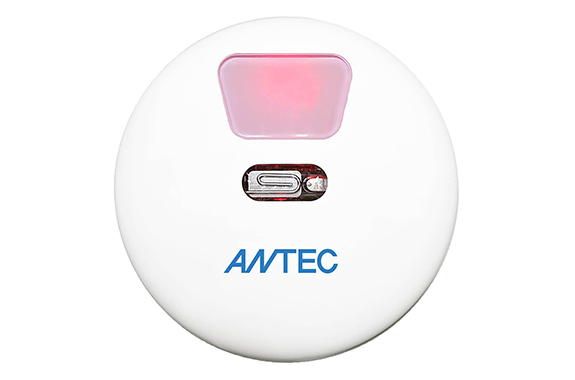

Antec SKH047MF Flame Detection Sensor

Manufacturer: Antec Co. Ltd.
Model: SKH047MF

Features

FM certification ensures product safety and performance, awarded to products meeting specific standards. The “FM Approved” mark signifies high reliability.
We are the first to receive FM certification for a non-explosion-proof ultraviolet flame sensor (as of October 2024), confirming superior quality and safety.
Ultraviolet Ray Separation: Minimizes false alarms by separating sunlight and flame rays.
Fast Flame Detection: Detects a 50m flame in 4 seconds.
Smallest UV Sensor: The world’s smallest ultraviolet flame sensor.
Power Lamp: Blue LED for power; turns red when flame is detected.
Voltage Output: Indicates flame detection and sensor status.
Detection Timer: Adjustable from 0.5 to 31 seconds to prevent false alarms. (FM Certification applies only to the 4-second setting)

Specifications

Product name	[FM Certified] Standard Flame Sensor
Model	SKH047MF
Input voltage	DC9 to 24V
wiring	4 wires (2 power wires, 2 output wires)
Current consumption	Standby: 35mA or less, Detection: 60mA or less (12V DC, at room temperature)
Ambient temperature	-10℃ to +60℃ (no condensation)
Detection Method	Ultraviolet detection method (detection wavelength: 185nm to 260nm)
Detection distance	50m away, 4 seconds *33×33×5(H)cm [Water 21mm(2.3L), N-heptane 9mm(0.9L)]
Detection Angle	Left and right 90°, up and down 30° (° ±45°, ±15° from the front of the sensor)
Detection timer function	0.5 seconds, 1 second to 31 seconds in 1 second increments (switchable using the DIP switch on the main unit) Default setting: 4 seconds *The timer setting certified by the FM standard is 4 seconds only. 　Settings other than 4 seconds do not comply with the FM standard.
Flame Detection Output	White cable: Voltage output 5-0V (0V when flame is detected)
Software Alarm Output	Green cable: Open collector output (transistor OFF when software is abnormal) 　* Be sure to connect a relay.
Alarm output holding function	Output hold time: Approximately 30 seconds *The alarm output will turn off after approximately 30 seconds when ultraviolet light is no longer detected.
Monitoring location	indoor
Operation indicator light (main unit LED)	Blue LED on, red LED off: Standby Blue LED off, red LED on: Flame detected Blue LED off, red LED off: Software abnormality
External dimensions	φ72.8mm x 34.5mm (including spacer)
Weight	Approximately 75g (including standard cable)
Case material	Flame-retardant ABS (UL94)
Connected devices	–
