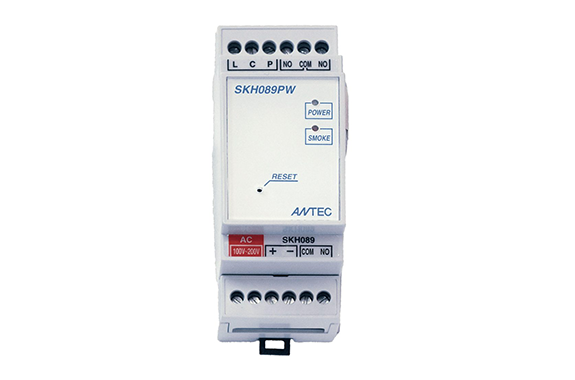

Product nameSensor output mixer with power supply
ModelSKH089PW
Installation locationStorage box with built-in control and power distribution panel
(fixed with DIN rail)
Temperature range-10℃ to +60℃ (no condensation or freezing)
Case materialABS resin (white)
sizeW35mm×D90mm×H58mm
wiringScrew-type terminal block
Detection Method–
Detection distance–
Detection Angle–
Detection Timer–
Input voltageAC85V to AC240V
Current consumption–
Output VoltageDC24V
Output Current300mA (Up to three 0KB-3 units can be connected)
Alarm activation display–
Alarm output (wired)1c relay contact (AC125V 0.5A DC24V 1A)
Alarm output (wireless)–
Output SystemAND or alone
Communication Function–
I/O ports–
Connected devicesFlame sensor SKH089 (manufactured by Antec)
Smoke detector 0KB-3 (manufactured by Nittan)
WeightApproximately 110g
