APPIE JIS TEST POWDERS1 JIS Z 8901 (Class 4,9 Talc)
Manufacturer: The Association of Powder Process Industry and Engineering (APPIE)
Model: JIS Z 8901 (Class 4,9 Talc)
Standard
- Reference standard:JIS Z 8901
- Material：Talc
- Particle density：2.7∼2.9g/cm3
Chemical component
| Chemical component | % ( weight ) |
|---|---|
| SiO2 | 60∼63 |
| Fe2O3 | 0∼3 |
| AI2O3 | 0∼3 |
| CaO | 0∼2 |
| MgO | 30∼34 |
| Ignition Loss | 3∼7 |
Particle size distribution
- Class4: Sieving(Top size 75µm), Sedimentation Method
Class9: Sedimentation Method
| Particle size µm | Oversize(weight basis)% | |
|---|---|---|
| Class 4 | Class 9 | |
| 2 | – | 79±5 |
| 4 | – | 55±5 |
| 5 | 69±5 | – |
| 8 | – | 23±5 |
| 10 | 40±5 | – |
| 16 | – | 6±3 |
| 20 | 12±5 | |
| 30 | – | |
| 40 | 3±3 | |
| 75 | 1 (max.) | |
Electron Microscopic Photograph

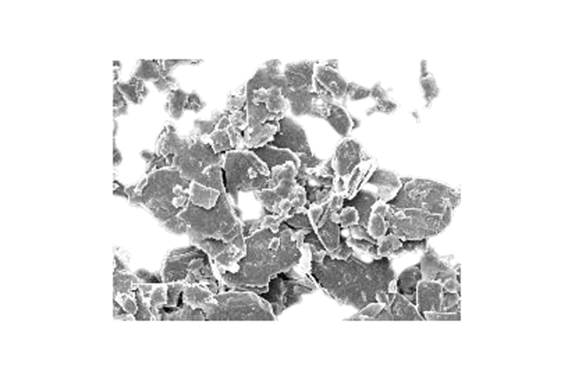

Test Powders 1-Class4（Talc）（SEM）

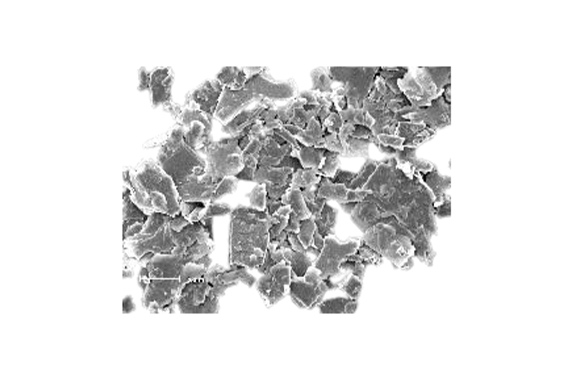

Test Powders 1-Class9（Talc）（SEM）
