Arimitsu

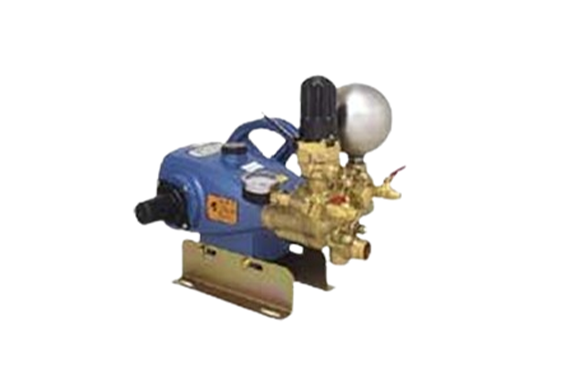

Arimitsu SR/AS Series Power Sprayers
Manufacturer : Arimitsu Industry Co., Ltd.
Model : SR/AS series (Power Sprayers)
Features
- Our power sprayer pumps are available in a wide range of sizes to meet specific horsepower requirements.
- All our power Sprayers are equipped with ceramic plungers for extra durability and are excellent for high pressure use.
Specification
| Model | Unit | SR-305 | SR-405 | SR-505 | SR-655 |
|---|---|---|---|---|---|
| DIMENSION (L × W × H) | mm | 350 × 262 × 330 | 350 × 257 × 330 | 407 × 327 × 360 | 407 × 327 × 360 |
| DRY WEIGHT | kg | 10.4 | 10.6 | 17.2 | 17.2 |
| R.P.M | min-1 | 600 – 1200 | 600 – 1200 | 600 – 1100 | 600 – 1000 |
| PRESSURE | MPa(kgf/cm2) | 4.9(50) | 4.9(50) | 4.9(50) | 4.9(50) |
| DISCHARGE VOLUME | ℓ/min | 15 – 30 | 20 – 40 | 27 – 50 | 38 – 63 |
| OUTPUT | kW(PS) | 2.4(3.3) | 3.2(4.3) | 4.3(5.8) | 5.0(6.8) |
| DISCHARGE PORT DIA. | – | PF1/4 × 2 | PF1/4 PF3/8 | PF1/4 PF3/8 | PF1/4 PF3/8 |
| PULLEY DIA. | – | 7(A-2) | 8(A-2) | 8(B-2) | 8(B-2) |
| Model | Unit | AS-204 | AS-905 | AS-1605 | – |
| DIMENSION (L×W×H) | mm | 330 × 235 × 325 | 467 × 342 × 365 | 545 × 399 × 500 | |
| DRY WEIGHT | kg | 8.1 | 20 | 31 | |
| R.P.M | min-1 | 700 – 1800 | 700 – 1100 | 650 – 1000 | |
| PRESSURE | MPa(kgf/cm2) | 3.5(36) | 4.9(50) | 4.9(50) | |
| DISCHARGE VOLUME | ℓ/min | 6.6 – 16.4 | 60 – 93 | 110 – 165 | |
| OUTPUT | kW(PS) | 1.5(2.0) | 6.3(8.5) | 11(15) | |
| DISCHARGE PORT DIA. | – | PF1/4 | PF1/2 × 2 | PT1B | |
| PULLEY DIA. | – | 5(A-2) | 9(B-3) | – |
