ASIA ELECTRONICS BPM SERIES DC-DC CONVERTERS
Manufacturer: ASIA ELECTRONICS
Model: BPM Series
Features
- Low Profile 12.8mm
- 6 Sided Metal Shielding
- Built-in Input Filter
- Wide Input Voltage Range
- Input-Output Isolation
- Adjustable Output Volt. ±5%
- High Efficiency 81〜90%
- Remote ON/OFF Control
- Input Low Voltage Protection
- Input Over Voltage Protection
- Output Over Voltage Protection 115〜140% Operation
- Thermal Protection +110℃〜+120℃
- Operating Ambient Temperature −40℃〜+85℃
- Max. Case Temperature +105℃
- High Reliability
- Conformity to RoHS2 Directive
- Not built-in aluminum and tantalum electrolytic capacitor
Specifications
◆General Characteristics
| Input Voltage, Range | DC12, 24, 48, 100V (See Table 1) |
| Output Voltage, Current | See Table 1 |
| Output Voltage Range | ±5% Adjustable |
| Efficiency | See Table 1 |
| Line Regulation | ±0.3% max. (at Vin Range) |
| Load Regulation | Single: ±0.5% max. (0–100% Load) Dual: ±1.3% max. (0–100% Load) |
| Reflected Input Ripple, Noise | (3% Vin) Vp-p max. |
| Output Ripple | 40mVp-p max. |
| Output Noise | 100mVp-p max. |
| Short Circuit Protection | Built-in, Auto-restart (See Fig. 2) |
| Over Voltage Protection | 115–140% Output Voltage |
| Remote ON/OFF Control | ON: Short or 0~0.8V OFF: Open or 2~12V (Between terminal ② ~ ③) |
| Temperature Coefficient | 0.02%/°C max. |
| Operating Ambient Temp. | −40°C ~ +85°C (See Fig. 1) |
| Max. Case Temperature | +105°C |
| Storage Temperature | −40°C ~ +115°C |
| Isolation Voltage | AC1500V 1 min. AC2000V 1 min. (100V Vin only) |
| Isolation Impedance | 100MΩ min. (at DC1000V) |
| Weight | Main Body: 150g max. Heat Sink: 55g max. |
| Humidity | 20 ~ 95% RH |
| Shock | 490m/s² (11msec 3 directions) |
| Vibration | 10 ~ 55Hz 98m/s² (30 minutes 3 directions) |
| Surface Structure | 6 Sided Aluminum Case |
| MTBF | Single: 500,000H Dual: 600,000H (Ta: 25°C, 80% Load, Nominal Vin) |
| Warranty | 5 years |

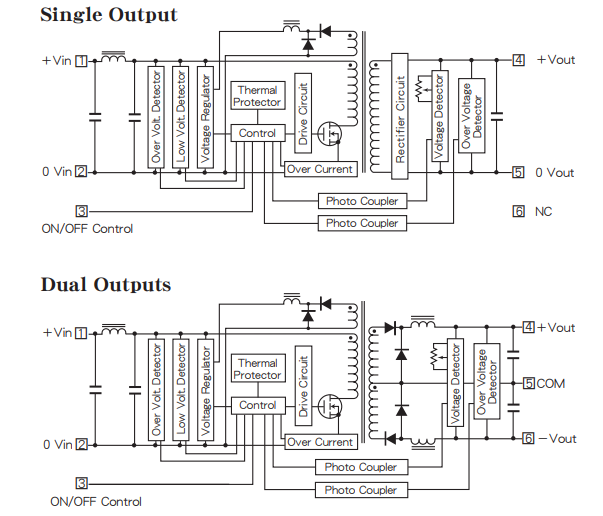

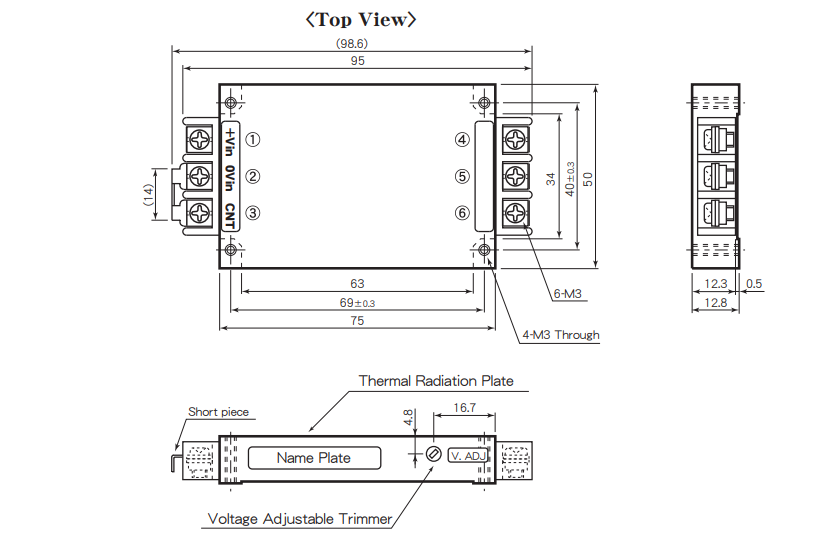

◆ Terminal Outs & Dimensions (±0.5mm)
| Terminal Outs | |||
|---|---|---|---|
| Single Output | Dual Outputs | ||
| ① | +Vdc in | ① | +Vdc in |
| ② | 0 Vdc in | ② | 0 Vdc in |
| ③ | ON/OFF Control | ③ | ON/OFF Control |
| ④ | +Vdc out | ④ | +Vdc out |
| ⑤ | 0 Vdc out | ⑤ | Common |
| ⑥ | No Connection | ⑥ | −Vdc out |

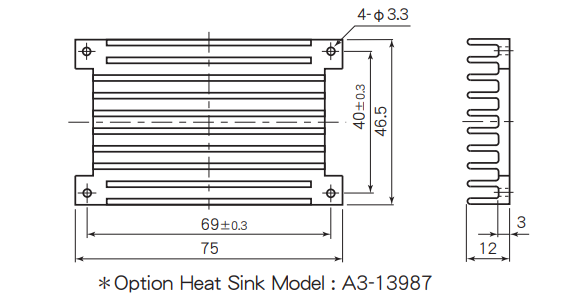

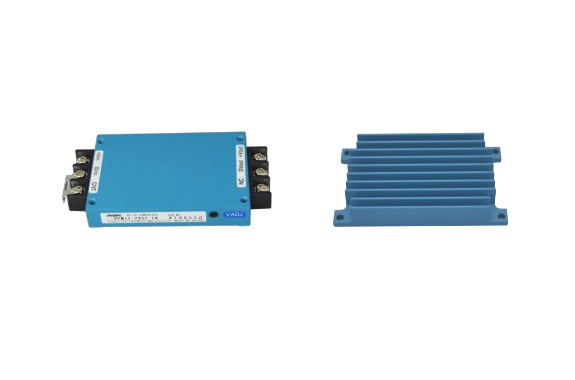

◆Option Heat Sink
◆Selection Guide
| Model Number | Input Voltage (Range) (V. DC) | Output Voltage (V. DC) | Output Current (A) | Efficiency (typ.) (%) | |
|---|---|---|---|---|---|
| 30% Load | 80% Load | ||||
| BPM12→3.3S 12A | 12 (8～18) | 3.3 | 12 | 81 | 86 |
| BPM12→5S 10A | 5 | 10 | 84 | 87 | |
| BPM12→6S 8.4A | 6 | 8.4 | 84 | 87 | |
| BPM12→12S 4.2A | 12 | 4.2 | 85 | 89 | |
| BPM12→15S 3.3A | 15 | 3.3 | 85 | 89 | |
| BPM12→24S 2.1A | 24 | 2.1 | 85 | 89 | |
| BPM12→30D ±2A | ±15 | ±2 | 84 | 88 | |
| BPM24→3.3S 12A | 24 (16～36) | 3.3 | 12 | 81 | 86 |
| BPM24→5S 10A | 5 | 10 | 86 | 89 | |
| BPM24→6S 8.4A | 6 | 8.4 | 86 | 89 | |
| BPM24→12S 4.2A | 12 | 4.2 | 87 | 90 | |
| BPM24→15S 3.3A | 15 | 3.3 | 87 | 90 | |
| BPM24→24S 2.1A | 24 | 2.1 | 87 | 90 | |
| BPM24→30D ±2A | ±15 | ±2 | 86 | 89 | |
| BPM48→3.3S 12A | 48 (32～72) | 3.3 | 12 | 81 | 86 |
| BPM48→5S 10A | 5 | 10 | 87 | 90 | |
| BPM48→6S 8.4A | 6 | 8.4 | 87 | 90 | |
| BPM48→12S 4.2A | 12 | 4.2 | 88 | 91 | |
| BPM48→15S 3.3A | 15 | 3.3 | 88 | 91 | |
| BPM48→24S 2.1A | 24 | 2.1 | 88 | 91 | |
| BPM48→30D ±2A | ±15 | ±2 | 87 | 90 | |
| BPM100→3.3S 12A | 100 (64～144) | 3.3 | 12 | 82 | 85 |
| BPM100→5S 10A | 5 | 10 | 85 | 89 | |
| BPM100→6S 8.4A | 6 | 8.4 | 85 | 89 | |
| BPM100→12S 4.2A | 12 | 4.2 | 86 | 90 | |
| BPM100→15S 3.3A | 15 | 3.3 | 86 | 90 | |
| BPM100→24S 2.1A | 24 | 2.1 | 86 | 90 | |
| BPM100→30D ±2A | ±15 | ±2 | 85 | 89 | |
