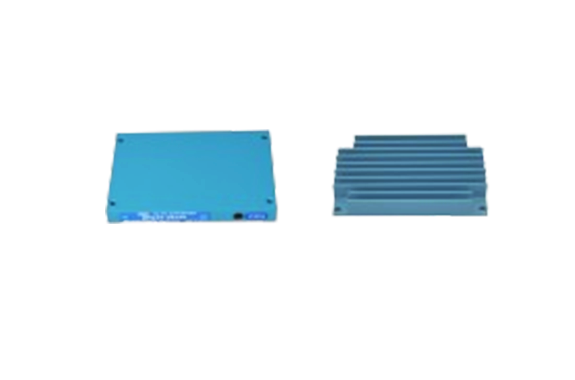

ASIA ELECTRONICS BPU SERIES DC-DC CONVERTERS

Manufacturer: ASIA ELECTRONICS
Model: BPU Series

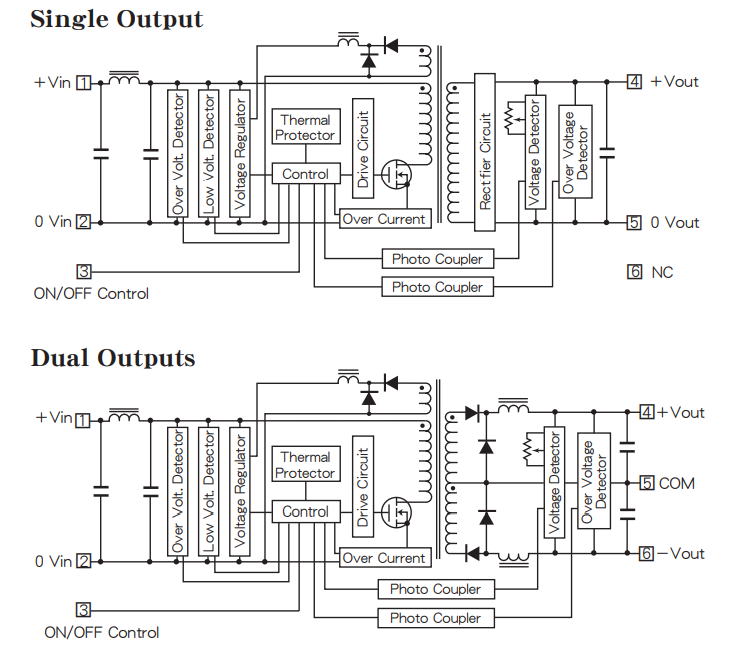

Features

Input Voltage, Range	DC12, 24, 48, 100, 140V (See Table 1) (at Ta: 25℃, Full Load, Nominal Vin)
Output Voltage, Current	See Table 1
Output Voltage Range	±5% Adjustable
Efficiency	See Table 1
Line Regulation	±0.3% max. (at Vin Range)
Load Regulation	±0.5% max.
±1% max.	(3.3, 5V Output only) (0～100% Load)
Reflected Input Ripple, Noise	(5% Vin) Vp-p max.
Output Ripple	40mVp-p max.
Output Noise	0.5% typ. (output ±100mV) p-p max.
Short Circuit Protection	Built-in, Auto-restart (See Fig. 2)
Over Voltage Protection	115%~140% Output Voltage
Temperature Coefficient	0.02%/°C max.
Operating Ambient Temp.	−40°C to +85°C (See Fig. 1)
Max. Case Temperature	+105°C
Storage Temperature	−55°C to +125°C
Isolation Voltage	AC2000V one minute
	(Input－Output－Case)
Isolation Impedance	100MΩ min. (at DC1000V) (Input－Output－Case)

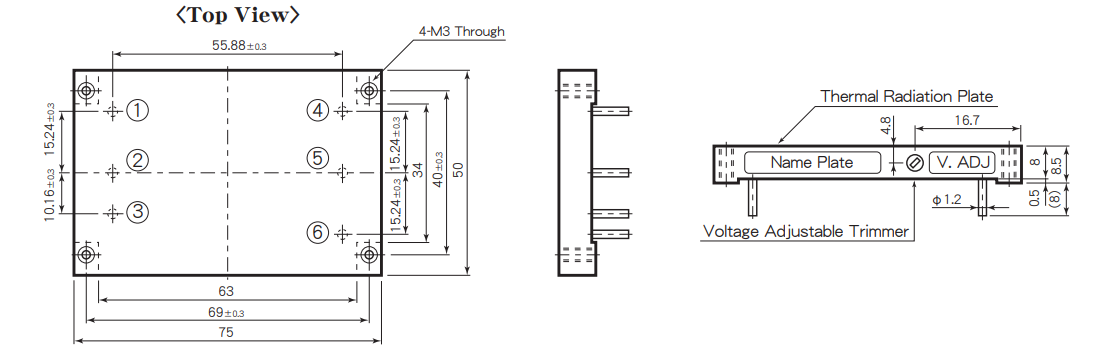

Weight	35g max.
Humidity	20～95% RH
Shock	490m/s² (11msec 3 directions)
Vibration	10～55Hz 98m/s² (30 minutes 3 directions)

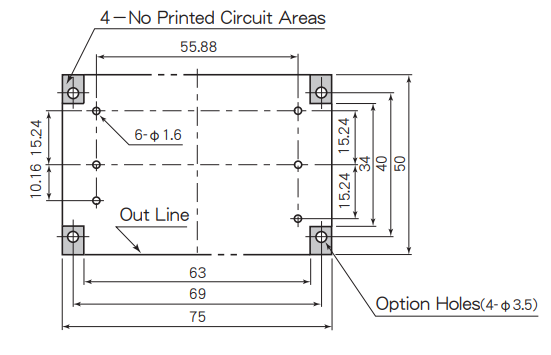

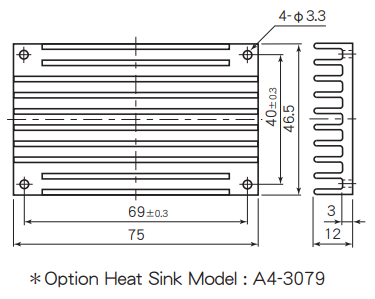

Surface Structure	Aluminum Case
MTBF	400,000H (Ta: 25℃, 80% Load, Nominal Vin)
Warranty	5 years

Model Number	Input Voltage (Range) (V. DC)	Output Voltage (V. DC)	Output Current (A)	Efficiency (typ.) (%) 30% Load	Efficiency (typ.) (%) 80% Load
BPU12-3.3S 12A	12 (8~18)	3.3	12	87	85
BPU12-5S 10A		5	10	86	89
BPU12-6S 8.4A		6	8.4	87	88
BPU12-12S 4.2A		12	4.2	88	88
BPU12-15S 3.3A		15	3.3	88	88
BPU12-24S 2.1A		24	2.1	83	88
BPU12-3.3D 3.6A		±3.3	±3.6	81	85
BPU12-5D 3A		±5	±3	80	82
BPU12-12D 1.5A		±12	±1.5	81	83
BPU12-15D 1.2A		±15	±1.2	81	84
BPU24-3.3S 12A	24 (16~36)	3.3	12	85	87
BPU24-5S 10A		5	10	88	89
BPU24-6S 8.4A		6	8.4	87	89
BPU24-12S 4.2A		12	4.2	88	88
BPU24-15S 3.3A		15	3.3	85	89
BPU24-24S 2.1A		24	2.1	83	88
BPU24-3.3D 3.6A		±3.3	±3.6	81	85
BPU24-5D 3A		±5	±3	80	82
BPU24-12D 1.5A		±12	±1.5	81	83
BPU24-15D 1.2A		±15	±1.2	82	84
BPU48-3.3S 12A	48 (32~72)	3.3	12	84	85
BPU48-5S 10A		5	10	85	89
BPU48-6S 8.4A		6	8.4	85	88
BPU48-12S 4.2A		12	4.2	88	88
BPU48-15S 3.3A		15	3.3	85	89
BPU48-24S 2.1A		24	2.1	85	90
BPU48-3.3D 3.6A		±3.3	±3.6	82	85
BPU48-5D 3A		±5	±3	81	83
BPU48-12D 1.5A		±12	±1.5	82	85
BPU48-15D 1.2A		±15	±1.2	82	85
BPU100-3.3S 12A	100 (64~144)	3.3	12	84	85
BPU100-5S 10A		5	10	85	89
BPU100-6S 8.4A		6	8.4	85	88
BPU100-12S 4.2A		12	4.2	88	88
BPU100-15S 3.3A		15	3.3	85	89
BPU100-24S 2.1A		24	2.1	85	90
BPU100-3.3D 3.6A		±3.3	±3.6	82	85
BPU100-5D 3A		±5	±3	81	83
BPU100-12D 1.5A		±12	±1.5	82	85
BPU100-15D 1.2A		±15	±1.2	82	85
