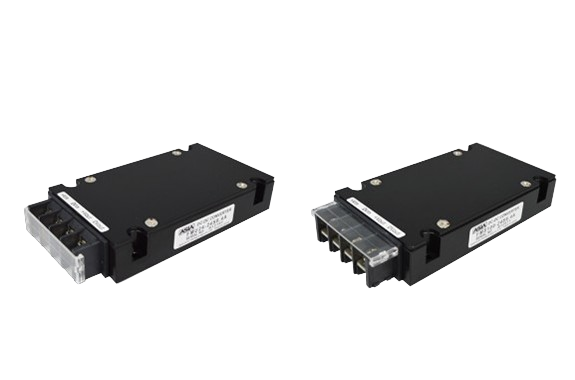

ASIA ELECTRONICS FM SERIES DC-DC CONVERTERS

Manufacturer: ASIA ELECTRONICS
Model: FM Series

Features

Input Voltage, Range	DC5, 12, 24, 48V (See Table 1)
Output Voltage, Current	See Table 1
Output Voltage Range	±5% Adjustable
Efficiency	See Table 1
Line Regulation	±0.3% max. (at Vin Range)
Load Regulation	Single: ±0.5% max. (0–100% Load) Dual: ±3% max. (10–100% Load)
Reflected Input Ripple, Noise	(3% Vin) V_p-p max.
Output Ripple	40mV_p-p max. 200mV_p-p max. (48V Vout only)
Output Noise	100mV_p-p max. 300mV_p-p max. (48V Vout only)
Short Circuit Protection	Built-in, Auto-restart (See Fig. 2)
Over Voltage Protection	115~140% of Output Voltage
Remote ON/OFF Control	ON: Short or 0~0.8V OFF: Open or 2~10V (Between terminal ② ~ ③)
Temperature Coefficient	0.02%/℃ max.
Operating Ambient Temp.	−40℃～+85℃ (See Fig. 1) −30℃～+85℃ (5V Vin only)
Max. Case Temperature	+105℃
Storage Temperature	−40℃～+115℃
Isolation Voltage	AC1500V one minute (Input–Output–Case)
Isolation Impedance	100MΩ min. (at DC1000V) (Input–Output–Case)

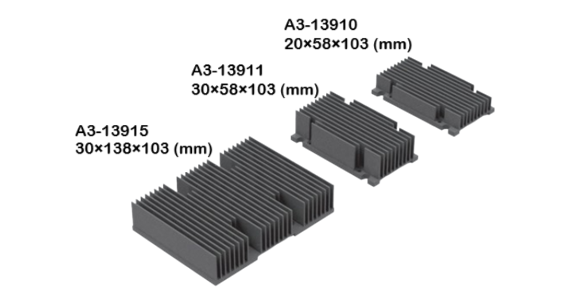

Weight	Main Body: 100g max. Heat Sink: 40g max.
Humidity	20～95% RH
Shock	490m/s² (11msec 3 directions)
Vibration	10～55Hz 98m/s² (30 minutes 3 directions)
Surface Structure	6 Sided Aluminum Case
MTBF	Single: 1,000,000H Dual: 700,000H (Ta: 25℃, 80% Load, Nominal Vin)
Warranty	5 years
