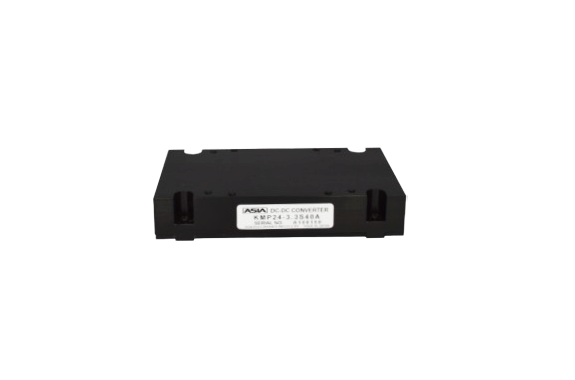

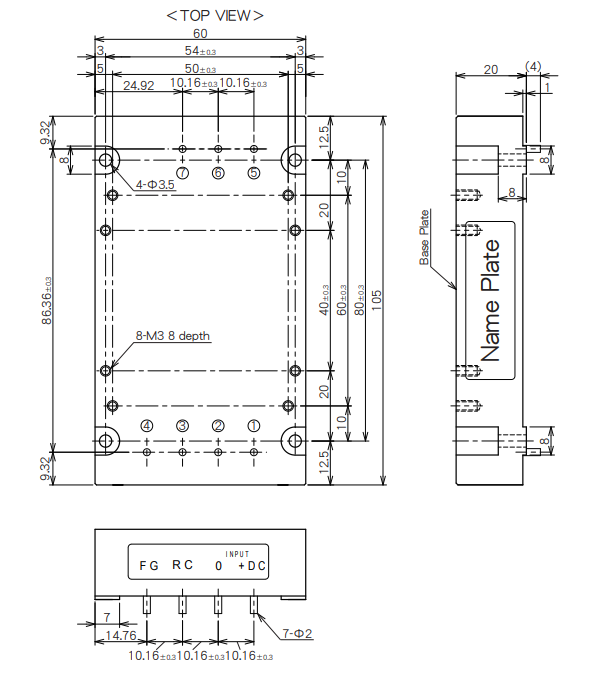

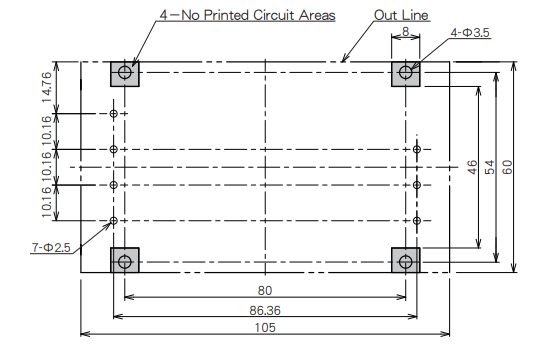

ASIA ELECTRONICS KMP SERIES DC-DC CONVERTERS

Manufacturer: ASIA ELECTRONICS
Model: KMP Series

Features

Input Voltage, Range	DC12, 24, 48, 100, 140V (See Table 1) (at Ta: 25℃, Full Load, Nominal Vin)
Output Voltage, Current	See Table 1
Output Voltage Range	±5% Adjustable
Efficiency	See Table 1
Line Regulation	±0.3% max. (at Vin Range)
Load Regulation	±0.5% max.
±1% max.	(3.3, 5V Output only) (0～100% Load)
Reflected Input Ripple, Noise	(5% Vin) Vp-p max.
Output Ripple	40mVp-p max.
Output Noise	0.5% typ. (output ±100mV) p-p max.
Short Circuit Protection	Built-in, Auto-restart (See Fig. 2)
Over Voltage Protection	115%~140% Output Voltage
Temperature Coefficient	0.02%/°C max.
Operating Ambient Temp.	−40°C to +85°C (See Fig. 1)
Max. Case Temperature	+105°C
Storage Temperature	−55°C to +125°C
Isolation Voltage	AC2000V one minute
	(Input－Output－Case)
Isolation Impedance	100MΩ min. (at DC1000V) (Input－Output－Case)
Weight	35g max.
Humidity	20～95% RH
Shock	490m/s² (11msec 3 directions)
Vibration	10～55Hz 98m/s² (30 minutes 3 directions)
Surface Structure	Aluminum Case
MTBF	400,000H (Ta: 25℃, 80% Load, Nominal Vin)
Warranty	5 years

Model Number	Input Volt. (Range) (V. DC)	Output Voltage (V. DC)	Output Current (A)	Efficiency (Typical)(%)
				20% Load	50% Load	80% Load
KMP12－3.3S 32A	12 (8～18) at 50% Load12 (9～18) at 100% Load	3.3	32	85	88	87
KMP12－5S 28A		5	28	86	90	88
KMP12－6S23.3A		6	23.3	86	90	88
KMP12－12S13.4A		12	13.4	87	90	89
KMP12－13.8S11.6A		13.8	11.6	87	90	89
KMP12－15S10.7A		15	10.7	87	90	89
KMP12－24S 6.7A		24	6.7	90	90	89
KMP12－28S 5.8A		28	5.8	90	90	89
KMP12－48S 3.4A		48	3.4	90	90	89
KMP24－3.3S 40A	24 (16～36)	3.3	40	88	91	90
KMP24－5S 32A		5	32	90	91	91
KMP24－6S26.6A		6	26.6	90	91	91
KMP24－12S16.7A		12	16.7	90	91	91
KMP24－13.8S14.5A		13.8	14.5	90	91	91
KMP24－15S13.4A		15	13.4	90	91	91
KMP24－24S 8.4A		24	8.4	91	91	91
KMP24－28S 7.2A		28	7.2	91	91	91
KMP24－48S 4.2A		48	4.2	91	91	91
KMP48－3.3S 40A	48 (36～76)	3.3	40	88	91	90
KMP48－5S 32A		5	32	90	91	91
KMP48－6S26.6A		6	26.6	90	91	91
KMP48－12S16.7A		12	16.7	90	91	91
KMP48－13.8S14.5A		13.8	14.5	90	91	91
KMP48－15S13.4A		15	13.4	90	91	91
KMP48－24S 8.4A		24	8.4	91	91	91
KMP48－28S 7.2A		28	7.2	91	91	91
KMP48－48S 4.2A		48	4.2	91	91	91
KMP100－3.3S 40A	100 (64～144)	3.3	40	88	91	90
KMP100－5S 32A		5	32	90	91	91
KMP100－6S26.6A		6	26.6	90	91	91
KMP100－12S16.7A		12	16.7	90	91	91
KMP100－13.8S14.5A		13.8	14.5	90	91	91
KMP100－15S13.4A		15	13.4	90	91	91
KMP100－24S 8.4A		24	8.4	91	91	91
KMP100－28S 7.2A		28	7.2	91	91	91
KMP100－48S 4.2A		48	4.2	91	91	91
KMP140－3.3S 40A	140 (90～200)	3.3	40	88	91	90
KMP140－5S 32A		5	32	90	92	91
KMP140－6S26.6A		6	26.6	90	92	91
KMP140－12S16.7A		12	16.7	90	92	91
KMP140－13.8S14.5A		13.8	14.5	90	92	91
KMP140－15S13.4A		15	13.4	90	92	91
KMP140－24S 8.4A		24	8.4	91	92	91
KMP140－28S 7.2A		28	7.2	91	92	91
KMP140－48S 4.2A		48	4.2	91	92	91
