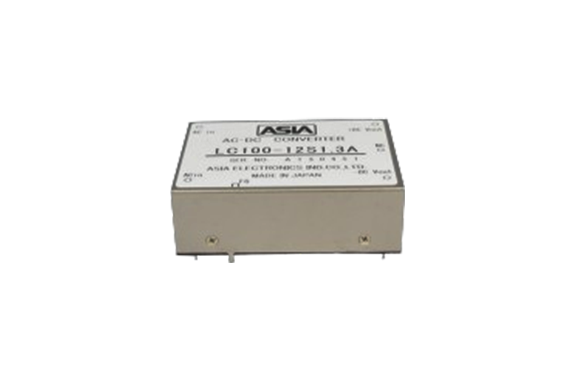

ASIA ELECTRONICS LC SERIES DC-DC CONVERTERS
Manufacturer: ASIA ELECTRONICS
Model: LC Series
Features
- Input-Output Isolation
- Completely Molding Device
- High Efficiency 75〜85％
- High Reliability
- 6 Sided Metal Shielding
- Operating Ambient Temperature −30℃〜＋71℃
- VCCI Class B
- Conformity to RoHS2 Directive
Specifications
◆General Characteristics
| Input Voltage, Range | DC12, 24, 48, 100, 140V (See Table 1) (at Ta: 25℃, Full Load, Nominal Vin) |
| Output Voltage, Current | See Table 1 |
| Output Voltage Range | ±5% Adjustable |
| Efficiency | See Table 1 |
| Line Regulation | ±0.3% max. (at Vin Range) |
| Load Regulation | ±0.5% max. |
| ±1% max. | (3.3, 5V Output only) (0～100% Load) |
| Reflected Input Ripple, Noise | (5% Vin) Vp-p max. |
| Output Ripple | 40mVp-p max. |
| Output Noise | 0.5% typ. (output ±100mV) p-p max. |
| Short Circuit Protection | Built-in, Auto-restart (See Fig. 2) |
| Over Voltage Protection | 115%~140% Output Voltage |
| Temperature Coefficient | 0.02%/°C max. |
| Operating Ambient Temp. | −40°C to +85°C (See Fig. 1) |
| Max. Case Temperature | +105°C |
| Storage Temperature | −55°C to +125°C |
| Isolation Voltage | AC2000V one minute |
| (Input－Output－Case) | |
| Isolation Impedance | 100MΩ min. (at DC1000V) (Input－Output－Case) |
| Weight | 35g max. |
| Humidity | 20～95% RH |
| Shock | 490m/s² (11msec 3 directions) |
| Vibration | 10～55Hz 98m/s² (30 minutes 3 directions) |
| Surface Structure | Aluminum Case |
| MTBF | 400,000H (Ta: 25℃, 80% Load, Nominal Vin) |
| Warranty | 5 years |

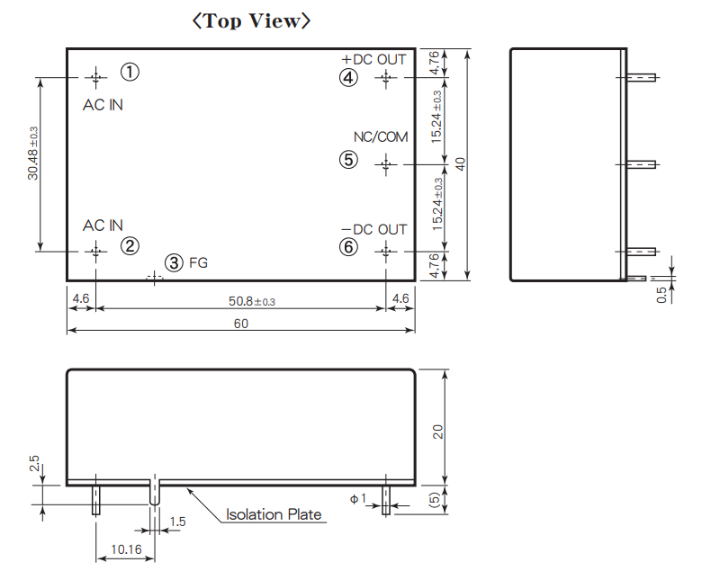

◆Pin Outs & Dimensions (±0.5mm)
| Single Output | Dual Outputs | ||
|---|---|---|---|
| ① | AC in | ① | AC in |
| ② | AC in | ② | AC in |
| ③ | Frame Ground | ③ | Frame Ground |
| ④ | +Vdc out | ④ | +Vdc out |
| ⑤ | No Connection | ⑤ | Common |
| ⑥ | −Vdc out | ⑥ | −Vdc out |

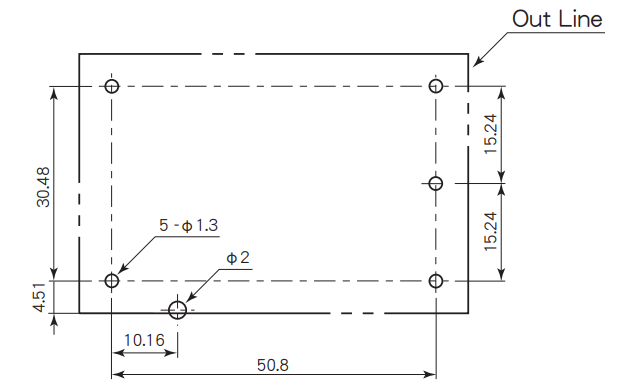

◆Hole Configurations on PCB (Top View)

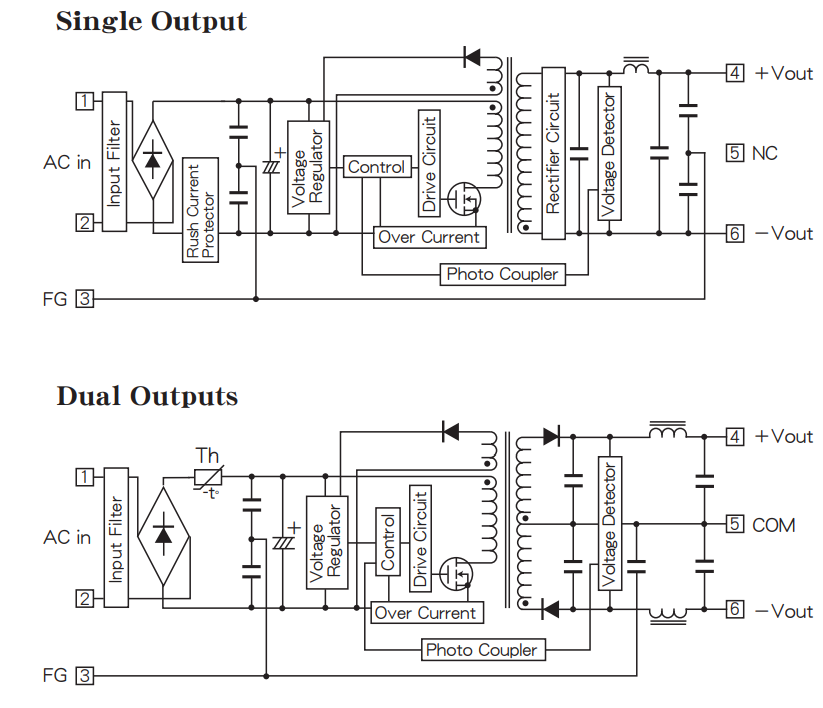

◆ Block Diagram
◆ Selection Guide
| Model Number | Input Volt. (Range) (V. AC) | Output Voltage (V. DC) | Output Current (A) | Efficiency (Typical) (%) |
|---|---|---|---|---|
| LC100– 3.3S 3.5A | 100 (85~132) | 3.3 | 3.5 | 81 |
| LC100– 5S 3A | 5 | 3 | 83 | |
| LC100– 12S 1.3A | 12 | 1.3 | 85 | |
| LC100– 15S 1A | 15 | 1 | 85 | |
| LC100– 24S 0.65A | 24 | 0.65 | 85 | |
| LC100– 5D 1.5A | ±5 | ±1.5 | 75 | |
| LC100– 12D 0.65A | ±12 | ±0.65 | 80 | |
| LC100– 15D 0.52A | ±15 | ±0.52 | 81 | |
| LC200– 3.3S 3.5A | 200 (175~264) | 3.3 | 3.5 | 81 |
| LC200– 5S 3A | 5 | 3 | 83 | |
| LC200– 12S 1.3A | 12 | 1.3 | 85 | |
| LC200– 15S 1A | 15 | 1 | 85 | |
| LC200– 24S 0.65A | 24 | 0.65 | 85 | |
| LC200– 5D 1.5A | ±5 | ±1.5 | 75 | |
| LC200– 12D 0.65A | ±12 | ±0.65 | 80 | |
| LC200– 15D 0.52A | ±15 | ±0.52 | 81 |
