ASIA ELECTRONICS PD SERIES DC-DC CONVERTERS
Manufacturer: ASIA ELECTRONICS
Model: PD Series
Features
- Wide Input Voltage Range
- High Efficiency 83%～90%
- Input-Output Isolation (AC2000V)
- Low Output Ripple and Noise
Long Life by mounting on - Chassis or Using Heat Sink
- Input Low Voltage Protection
- Input Over Voltage Protection
- Output Over Voltage Protection 120%～140% Operation
- Operating Ambient Temperature －25℃～＋71℃
- Max. Case Temperature＋85℃
- Conformity to RoHS2 Directive
Specifications
◆General Characteristics
| Input Voltage, Range | DC12, 24, 48, 96V (See Table 1) |
| Output Voltage, Current | See Table 1 |
| Output Voltage Adjustment | ±5% |
| Efficiency | See Table 1 |
| Line Regulation | 0.1% max. (at Vin Range) |
| Load Regulation | 1% max. (0~100% Load) |
| Output Ripple | (0.1% Vin + 50mV) p-p max. |
| Output Noise | (0.5% Vout + 50mV) p-p max. |
| Short Circuit Protection | Built-in, Auto-restart (See Fig. 2) |
| Output Over Voltage Protection | Built-in, Shut-down (120%~140% Vout) |
| Temperature Coefficient | 0.02%/°C max. |
| Operating Ambient Temp. | −25°C ~ +71°C (See Fig. 1) |
| Max. Case Temp. | +85°C |
| Storage Temp. | −40°C ~ +85°C |
| Isolation Voltage | AC2000V one minute (Input–Output–Case) |
| Isolation Impedance | 100MΩ min. (at DC1000V) (Input–Output–Case) |
| Weight | Main Body: 800g max. Pair Heat Sinks: 250g max. |
| Humidity | 20~95% RH |
| Shock | 490m/s² (11msec 3 directions) |
| Vibration | 10~55Hz 98m/s² (30 minutes 3 directions) |
| Surface Structure | Aluminum Case |
| MTBF | 120,000H (Ta: 25°C, 80% Load, Nominal Vin) |
| Warranty | 5 years |

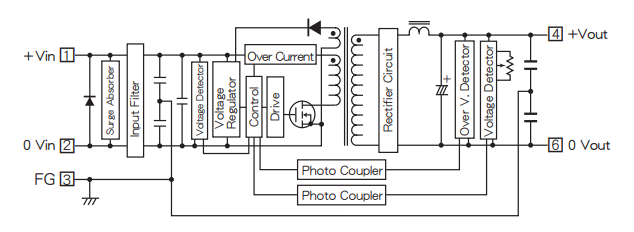

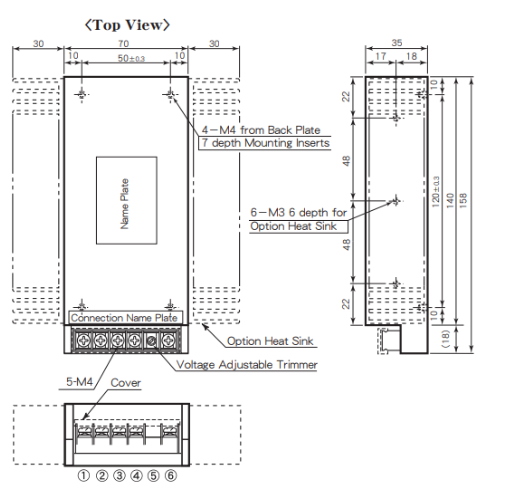

◆Terminal Outs & Dimensions (±0.5mm)
| Terminal Outs | |
|---|---|
| ① | + Vdc in |
| ② | 0 Vdc in |
| ③ | Frame Ground |
| ④ | + Vdc out |
| ⑤ | Vout Adjustment |
| ⑥ | 0 Vdc out |
◆Selection Guide
| Model Number | Input Volt. (Range) (V. DC) | Output Voltage (V. DC) | Output Current (A) | Efficiency (typ) (%) |
|---|---|---|---|---|
| PD12 – 3.3S 26A | 12 (6~18) | 3.3 | 26 | 83 |
| PD12 – 5S 20A | 5 | 20 | 85 | |
| PD12 – 12S 8.3A | 12 | 8.3 | 86 | |
| PD12 – 13.8S 7.3A | 13.8 | 7.3 | 85 | |
| PD12 – 15S 6.7A | 15 | 6.7 | 85 | |
| PD12 – 24S 4.5A | 24 | 4.5 | 84 | |
| PD12 – 48S 2.3A | 48 | 2.3 | 84 | |
| PD12 – 100S 1.1A | 100 | 1.1 | 90 | |
| PD12 – 140S 0.8A | 140 | 0.8 | 90 | |
| PD12 – 300S 0.36A | 300 | 0.36 | 90 | |
| PD24 – 3.3S 26A | 24 (14~40) | 3.3 | 26 | 85 |
| PD24 – 5S 20A | 5 | 20 | 87 | |
| PD24 – 12S 8.3A | 12 | 8.3 | 86 | |
| PD24 – 13.8S 7.3A | 13.8 | 7.3 | 86 | |
| PD24 – 15S 6.7A | 15 | 6.7 | 86 | |
| PD24 – 24S 4.5A | 24 | 4.5 | 86 | |
| PD24 – 48S 2.3A | 48 | 2.3 | 86 | |
| PD24 – 100S 1.1A | 100 | 1.1 | 90 | |
| PD24 – 140S 0.8A | 140 | 0.8 | 90 | |
| PD24 – 300S 0.36A | 300 | 0.36 | 90 | |
| PD48 – 3.3S 26A | 48 (28~80) | 3.3 | 26 | 83 |
| PD48 – 5S 20A | 5 | 20 | 85 | |
| PD48 – 12S 8.3A | 12 | 8.3 | 86 | |
| PD48 – 13.8S 7.3A | 13.8 | 7.3 | 85 | |
| PD48 – 15S 6.7A | 15 | 6.7 | 85 | |
| PD48 – 24S 4.5A | 24 | 4.5 | 84 | |
| PD48 – 48S 2.3A | 48 | 2.3 | 84 | |
| PD48 – 100S 1.1A | 100 | 1.1 | 90 | |
| PD48 – 140S 0.8A | 140 | 0.8 | 90 | |
| PD48 – 300S 0.36A | 300 | 0.36 | 90 | |
| PD96 – 3.3S 26A | 96 (56~160) | 3.3 | 26 | 83 |
| PD96 – 5S 20A | 5 | 20 | 85 | |
| PD96 – 12S 8.3A | 12 | 8.3 | 86 | |
| PD96 – 13.8S 7.3A | 13.8 | 7.3 | 85 | |
| PD96 – 15S 6.7A | 15 | 6.7 | 85 | |
| PD96 – 24S 4.5A | 24 | 4.5 | 84 | |
| PD96 – 48S 2.3A | 48 | 2.3 | 84 | |
| PD96 – 100S 1.1A | 100 | 1.1 | 90 | |
| PD96 – 140S 0.8A | 140 | 0.8 | 90 | |
| PD96 – 300S 0.36A | 300 | 0.36 | 90 |
