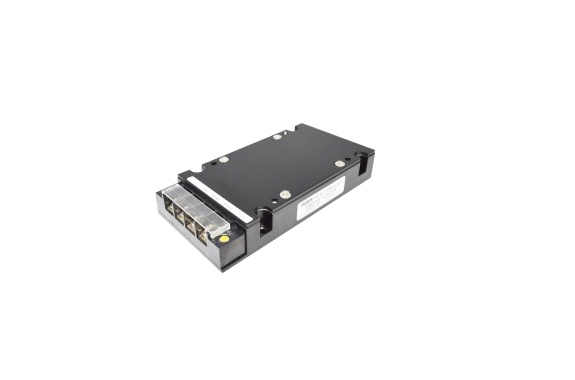

ASIA ELECTRONICS PM SERIES DC-DC CONVERTERS

Manufacturer: ASIA ELECTRONICS
Model: PM Series

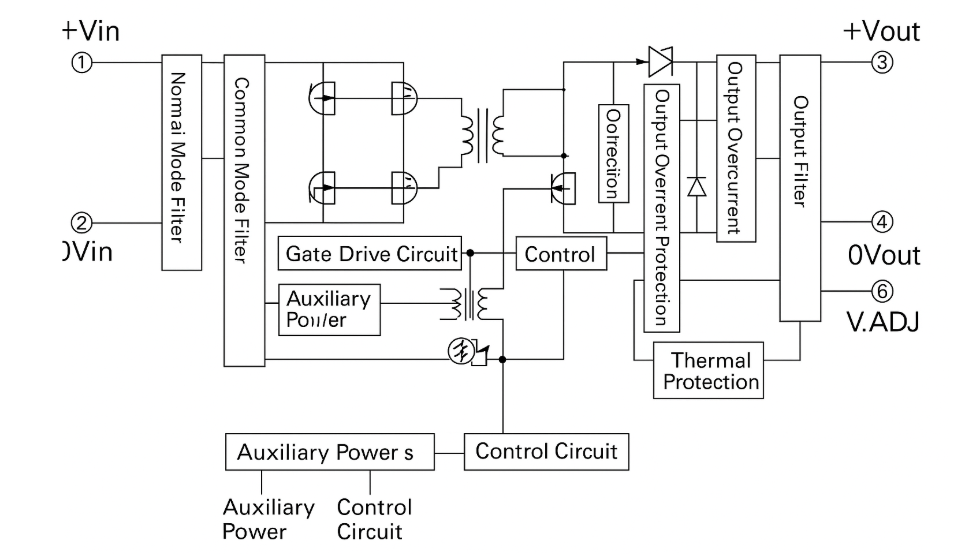

Features

Input Voltage, Range	DC12, 24, 48, 100, 140V (See Table 1) (at Ta: 25℃, Full Load, Nominal Vin)
Output Voltage, Current	See Table 1
Output Voltage Range	±5% Adjustable
Efficiency	See Table 1
Line Regulation	±0.3% max. (at Vin Range)
Load Regulation	±0.5% max.
±1% max.	(3.3, 5V Output only) (0～100% Load)
Reflected Input Ripple, Noise	(5% Vin) Vp-p max.
Output Ripple	40mVp-p max.
Output Noise	0.5% typ. (output ±100mV) p-p max.
Short Circuit Protection	Built-in, Auto-restart (See Fig. 2)
Over Voltage Protection	115%~140% Output Voltage
Temperature Coefficient	0.02%/°C max.
Operating Ambient Temp.	−40°C to +85°C (See Fig. 1)
Max. Case Temperature	+105°C
Storage Temperature	−55°C to +125°C
Isolation Voltage	AC2000V one minute
	(Input－Output－Case)
Isolation Impedance	100MΩ min. (at DC1000V) (Input－Output－Case)
Weight	35g max.
Humidity	20～95% RH
Shock	490m/s² (11msec 3 directions)
Vibration	10～55Hz 98m/s² (30 minutes 3 directions)
Surface Structure	Aluminum Case
MTBF	400,000H (Ta: 25℃, 80% Load, Nominal Vin)
Warranty	5 years

Model	Input Voltage (Range V.DC)	Output Voltage (V.DC)	Output Current (A)	Efficiency (typ. %)
Model	Input Voltage (Range V.DC)	Output Voltage (V.DC)	Output Current (A)	20% Load	50% Load	80% Load
PMS 12–12S 20A	12 (8–18)	12	20	87	91	91
PMS 12–13.8S 17.4A		13.8	17.4	87	91	91
PMS 12–15S 16A		15	16	87	91	91
PMS 12–24S 10A		24	10	88	92	92
PMS 12–48S 8.6A		48	8.6	89	93	93
PMS 24–12S 20.5A	24 (16–36)	12	20.5	88	93	93
PMS 24–13.8S 21.7A		13.8	21.7	88	93	93
PMS 24–15S 20A		15	20	88	93	93
PMS 24–24S 12.5A		24	12.5	89	93	93
PMS 24–48S 6.25A		48	6.25	89	93	93
PMS 48–12S 20A	48 (36–76)	12	20	88	93	93
PMS 48–13.8S 21.7A		13.8	21.7	88	93	93
PMS 48–15S 20A		15	20	88	93	93
PMS 48–24S 12.5A		24	12.5	89	93	93
PMS 48–48S 6.25A		48	6.25	89	93	93
PMS 100–12S 20A	100 (64–144)	12	20	88	93	93
PMS 100–13.8S 21.7A		13.8	21.7	88	93	93
PMS 100–15S 20A		15	20	88	93	93
PMS 100–24S 12.5A		24	12.5	89	93	93
PMS 100–48S 6.25A		48	6.25	89	93	93
PMS 140–12S 20A	140 (90–200)	12	20	88	93	93
PMS 140–13.8S 21.7A		13.8	21.7	88	93	93
PMS 140–15S 20A		15	20	88	93	93
PMS 140–24S 12.5A		24	12.5	89	93	93
PMS 140–48S 6.25A		48	6.25	89	93	93

* Ripple and noise measured with 1.5m twisted pair input line
* May vary depending on operating environment
