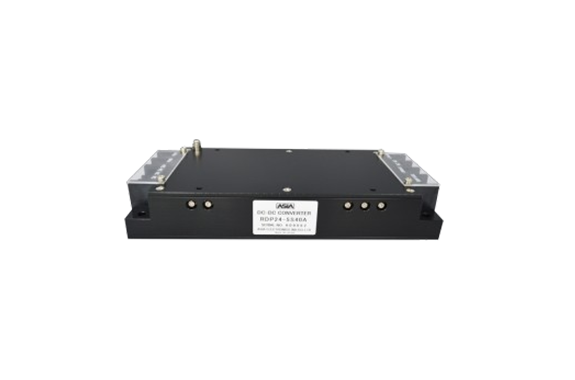

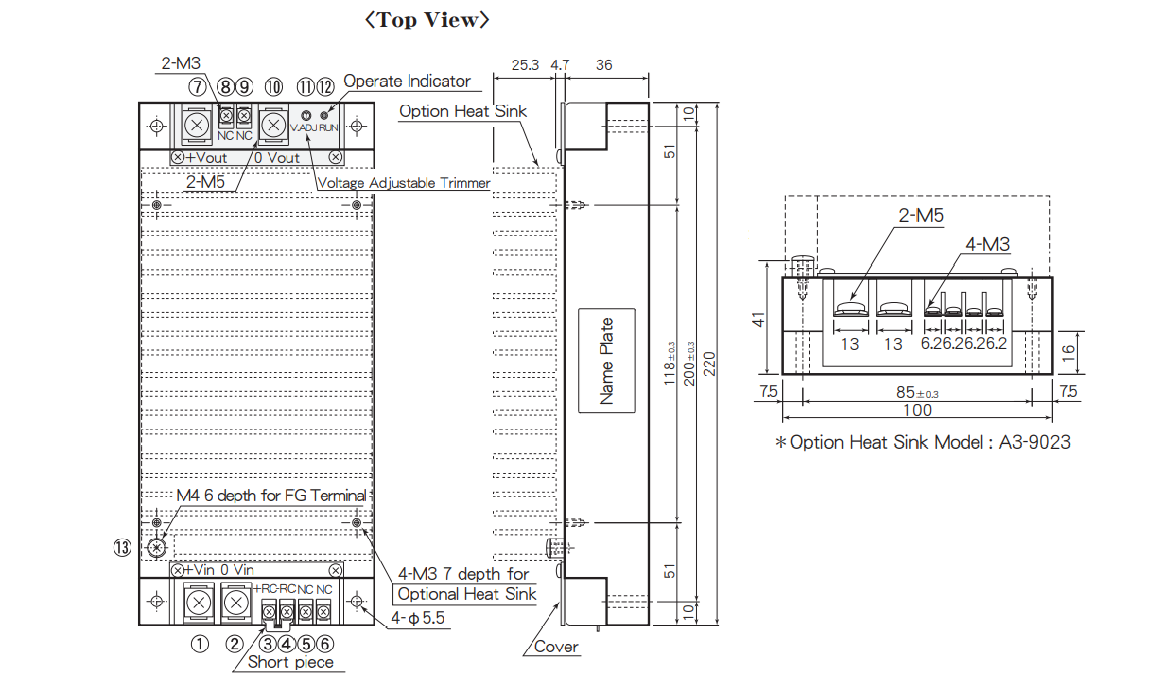

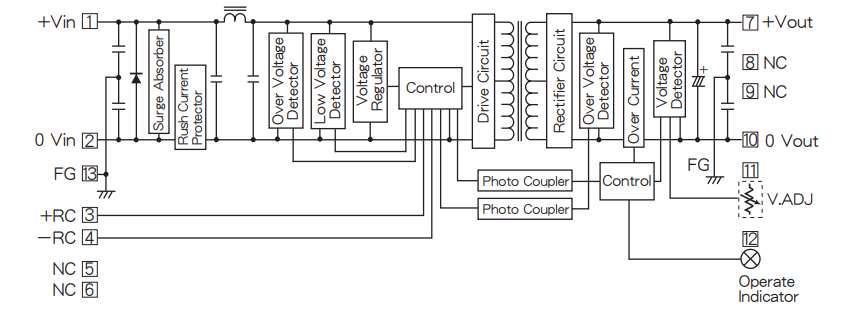

ASIA ELECTRONICS RDP SERIES DC-DC CONVERTERS

Manufacturer: ASIA ELECTRONICS
Model: RDP Series

Features

Input Voltage, Range	DC12, 24, 48, 100, 140V (See Table 1) (at Ta: 25℃, Full Load, Nominal Vin)
Output Voltage, Current	See Table 1
Output Voltage Range	±5% Adjustable
Efficiency	See Table 1
Line Regulation	±0.3% max. (at Vin Range)
Load Regulation	±0.5% max.
±1% max.	(3.3, 5V Output only) (0～100% Load)
Reflected Input Ripple, Noise	(5% Vin) Vp-p max.
Output Ripple	40mVp-p max.
Output Noise	0.5% typ. (output ±100mV) p-p max.
Short Circuit Protection	Built-in, Auto-restart (See Fig. 2)
Over Voltage Protection	115%~140% Output Voltage
Temperature Coefficient	0.02%/°C max.
Operating Ambient Temp.	−40°C to +85°C (See Fig. 1)
Max. Case Temperature	+105°C
Storage Temperature	−55°C to +125°C
Isolation Voltage	AC2000V one minute
	(Input－Output－Case)
Isolation Impedance	100MΩ min. (at DC1000V) (Input－Output－Case)
Weight	35g max.
Humidity	20～95% RH
Shock	490m/s² (11msec 3 directions)
Vibration	10～55Hz 98m/s² (30 minutes 3 directions)
Surface Structure	Aluminum Case
MTBF	400,000H (Ta: 25℃, 80% Load, Nominal Vin)
Warranty	5 years

Model Number	Input Voltage (Range) (V. DC)	Input Rush Current (max.)(A)	Output Voltage (V. DC)	Output Current (A)	Efficiency (Typ.) 20%	Efficiency (Typ.) 80%
RDP12－3.3S 40A	12 (9～18)	62	3.3	40	85	87
RDP12－5S 40A			5	40	86	89
RDP12－12S 20.8A			12	20.8	88	91
RDP12－13.8S 18.1A			13.8	18.1	88	91
RDP12－15S 16.7A			15	16.7	88	91
RDP12－24S 10.5A			24	10.5	89	91
RDP12－48S 5.3A			48	5.3	89	91
RDP12－100S 1.3A			100	1.3	89	91
RDP12－200S 0.85A			200	0.85	89	91
RDP12－300S 0.55A			300	0.55	89	91
RDP12－300S 0.85A			300	0.85	89	91
RDP24－3.3S 40A	24 (18～36)	31	3.3	40	85	87
RDP24－5S 40A			5	40	87	91
RDP24－12S 20.8A			12	20.8	89	91
RDP24－13.8S 18.1A			13.8	18.1	89	91
RDP24－15S 16.7A			15	16.7	89	91
RDP24－24S 10.5A			24	10.5	89	91
RDP24－48S 5.3A			48	5.3	89	91
RDP24－100S 1.3A			100	1.3	89	91
RDP24－200S 0.85A			200	0.85	89	91
RDP24－300S 0.55A			300	0.55	89	91
RDP24－300S 0.85A			300	0.85	89	91
RDP48－3.3S 40A	48 (36～72)	16	3.3	40	85	87
RDP48－5S 40A			5	40	87	91
RDP48－12S 20.8A			12	20.8	89	91
RDP48－13.8S 18.1A			13.8	18.1	89	91
RDP48－15S 16.7A			15	16.7	89	91
RDP48－24S 10.5A			24	10.5	89	91
RDP48－48S 5.3A			48	5.3	89	91
RDP48－100S 1.3A			100	1.3	89	91
RDP48－200S 0.85A			200	0.85	89	91
RDP48－300S 0.55A			300	0.55	89	91
RDP48－300S 0.85A			300	0.85	89	91
RDP96－3.3S 40A	96 (70～144)	8	3.3	40	85	87
RDP96－5S 40A			5	40	87	91
RDP96－12S 20.8A			12	20.8	89	91
RDP96－13.8S 18.1A			13.8	18.1	89	91
RDP96－15S 16.7A			15	16.7	89	91
RDP96－24S 10.5A			24	10.5	89	91
RDP96－48S 5.3A			48	5.3	89	91
RDP96－100S 1.3A			100	1.3	89	91
RDP96－200S 0.85A			200	0.85	89	91
RDP96－300S 0.55A			300	0.55	89	91
RDP96－300S 0.85A			300	0.85	89	91
