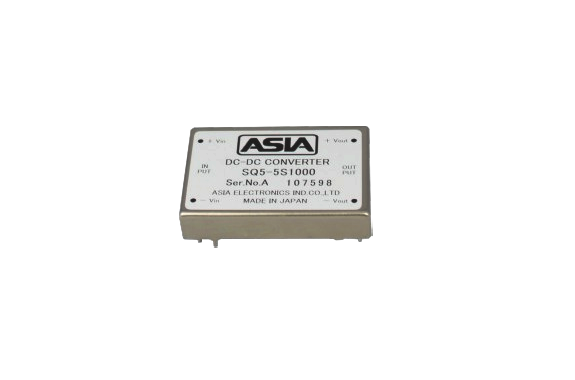

ASIA ELECTRONICS SQ SERIES DC-DC CONVERTERS

Manufacturer: ASIA ELECTRONICS
Model: SQ Series

Features

  • 10mm in Height
  • Built-in Input Filter
  • Input-Output Isolation
  • High Efficiency 79~87%
  • Wide Input Voltage Range
  • High Reliability
  • Low No Load Current
  • 5 Sided Metal Shielding
  • Operating Ambient Temp. −40℃~+85℃
  • Max. Case Temperature +100℃
  • Conformity to RoHS2 Directive
  • Not built-in aluminum and tantalum electrolytic capacitor

Specifications

◆General Characteristics
Input Voltage, RangeDC12, 24, 48, 100, 140V (See Table 1)
(at Ta: 25℃, Full Load, Nominal Vin)
Output Voltage, CurrentSee Table 1
Output Voltage Range±5% Adjustable
EfficiencySee Table 1
Line Regulation±0.3% max. (at Vin Range)
Load Regulation±0.5% max.
±1% max.(3.3, 5V Output only) (0~100% Load)
Reflected Input Ripple, Noise(5% Vin) Vp-p max.
Output Ripple40mVp-p max.
Output Noise0.5% typ. (output ±100mV) p-p max.
Short Circuit ProtectionBuilt-in, Auto-restart (See Fig. 2)
Over Voltage Protection115%~140% Output Voltage
Temperature Coefficient0.02%/°C max.
Operating Ambient Temp.−40°C to +85°C (See Fig. 1)
Max. Case Temperature+105°C
Storage Temperature−55°C to +125°C
Isolation VoltageAC2000V one minute
(Input-Output-Case)
Isolation Impedance100MΩ min. (at DC1000V)
(Input-Output-Case)
Weight35g max.
Humidity20~95% RH
Shock490m/s² (11msec 3 directions)
Vibration10~55Hz 98m/s²
(30 minutes 3 directions)
Surface StructureAluminum Case
MTBF400,000H
(Ta: 25℃, 80% Load, Nominal Vin)
Warranty5 years

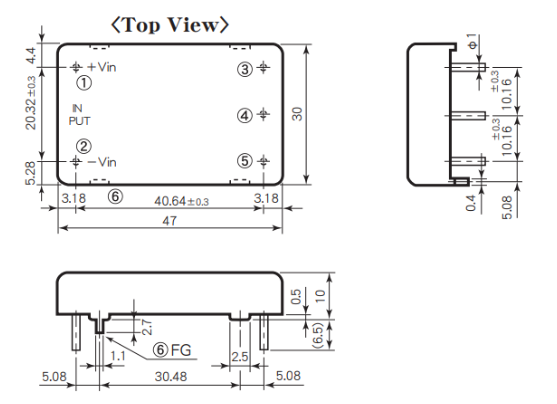

◆Pin Outs & Dimensions (±0.5mm)
Pin Outs
Single OutputDual Outputs
+ Vdc in+ Vdc in
− Vdc in− Vdc in
+ Vdc out+ Vdc out
No PinCommon
− Vdc out− Vdc out
Frame GroundFrame Ground

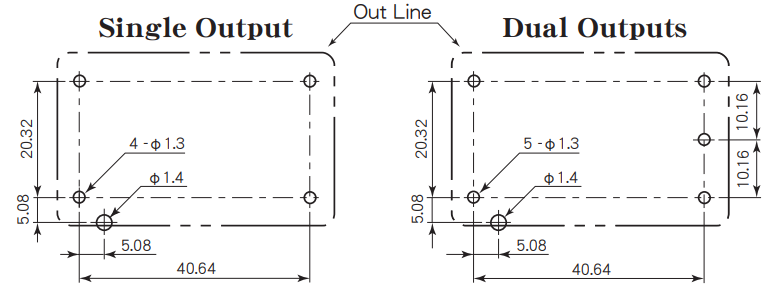

◆ Hole Configurations on PCB (Top View)
◆Selection Guide

Model NumberInput Volt. (Range) (V. DC)Output Voltage (V. DC)Output Current (mA)Efficiency (Typical) (%)
SQ 5-5S10005 (4.5~9)5100079
SQ 5-6S900690083
SQ 5-12S5001250083
SQ 5-15S4001540083
SQ 5-24S2502425083
SQ 5-1D250±5±25079
SQ 5-12D250±12±25080
SQ 5-15D200±15±20083
SQ12-5S100012 (8~18)5100083
SQ12-6S900690083
SQ12-12S5001250085
SQ12-15S4001540085
SQ12-24S2502425085
SQ12-1D250±5±25085
SQ12-12D250±12±25086
SQ12-15D200±15±20086
SQ24-5S100024 (16~36)5100081
SQ24-6S900690081
SQ24-12S5001250085
SQ24-15S4001540085
SQ24-24S2502425085
SQ24-1D250±5±25085
SQ24-12D250±12±25085
SQ24-15D200±15±20085
SQ48-5S100048 (32~72)5100081
SQ48-6S900690081
SQ48-12S5001250085
SQ48-15S4001540085
SQ48-24S2502425085
SQ48-1D250±5±25085
SQ48-12D250±12±25085
SQ48-15D200±15±20085

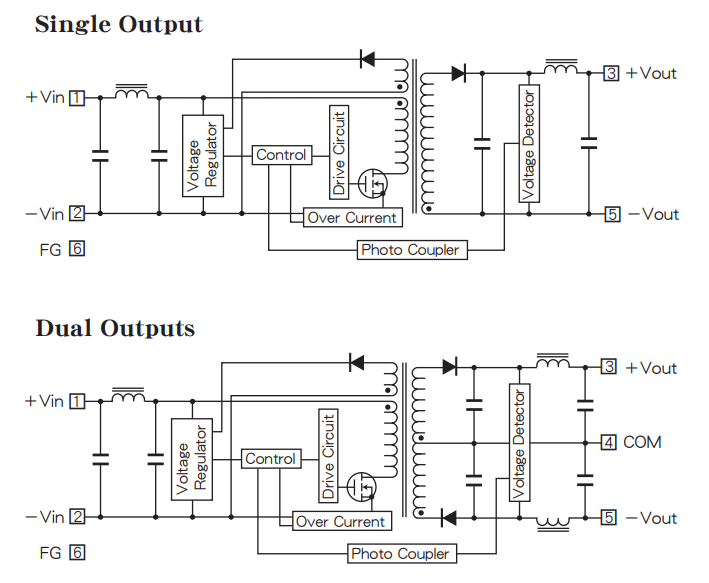

◆Block Diagram
