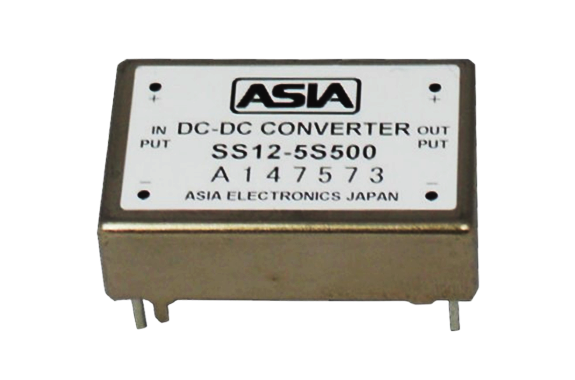

ASIA ELECTRONICS SS Series DC-DC Converter
Manufacturer: ASIA ELECTRONICS
Model: SS Series
Features
- 10mm in Height
- Built-in Input Filter
- Input-Output Isolation
- High Efficiency 75～82%
- Wide Input Voltage Range
- High Reliability
- Low No Load Current
- 5 Sided Metal Shielding
- Operating Ambient Temp. −40℃～+85℃
- Max. Case Temperature +100℃
- Conformity to RoHS2 Directive
- Not built-in aluminum and tantalum electrolytic capacitor
Specifications
■General Characteristics
| Input Voltage, Range | DC5, 12, 24, 48V (See Table 1) |
| Output Voltage, Current | See Table 1 |
| Output Voltage Accuracy | ±2% ±3% (5, 6V Vout only) |
| Efficiency | See Table 1 |
| Line Regulation | 0.3% max. (at Vin Range) |
| Load Regulation | Single: ±0.5% max. (0–100% Load) Dual: ±3% max. (0–100% Load) |
| Reflected Input Ripple and Noise | (3% Vin)Vp-p max. |
| Output Ripple | 20mVp-p max. |
| Output Noise | 100mVp-p max. |
| Short Circuit Protection | Built-in, Auto-restart (See Fig. 2) |
| Temperature Coefficient | 0.02%/℃ max. |
| Operating Ambient Temp. | −40℃～+85℃ (See Fig. 1) −30℃～+85℃ (5V Vin only) −40℃～+70℃ |
| Storage Temperature | −40℃～+100℃ |
| Isolation Voltage | AC500V one minute (Input–Output–Case) |
| Isolation Impedance | 100MΩ min. (at DC1000V) (Input–Output–Case) |
| Weight | 18g max. |
| Humidity | 20～95% RH |
| Shock | 490m/s² (11msec, 3 directions) |
| Vibration | 10～55Hz 98m/s² (30 minutes, 3 directions) |
| Surface Structure | 5 Sided Steel Case |
| Soldering Conditions | Soldering DIP: 260℃, for 15 seconds max. Soldering iron: 360℃, for 5 seconds max. |
| MTBF | Single: 1,200,000H Dual: 1,000,000H (Ta: 25℃, 80% Load, Nominal Vin) |
| Warranty | 5 years |

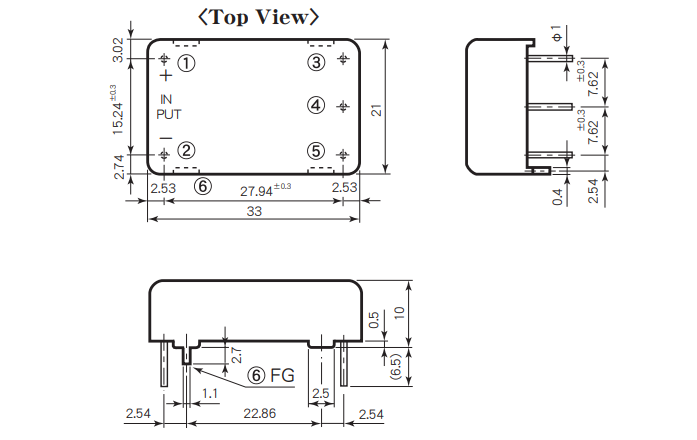

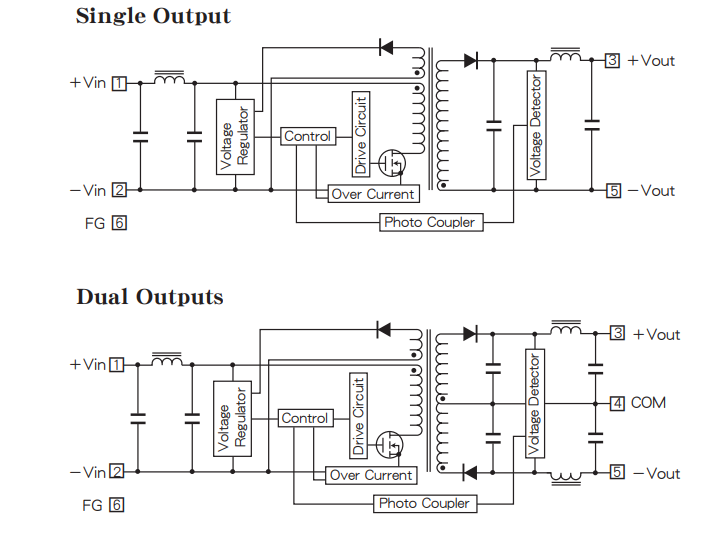

■Pin Outs & Dimensions (±0.5mm)
| Single Output | Dual Outputs |
|---|---|
| ① +Vdc in | ① +Vdc in |
| ② −Vdc in | ② −Vdc in |
| ③ +Vdc out | ③ +Vdc out |
| ④ No Pin | ④ Common |
| ⑤ −Vdc out | ⑤ −Vdc out |
| ⑥ Frame Ground | ⑥ Frame Ground |

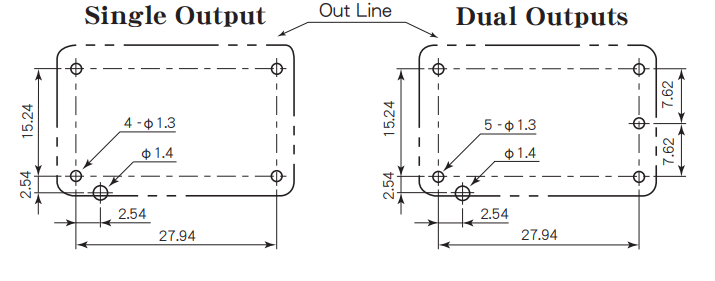

■Hole Configurations on PCB (Top View)
| Model Number | Input Volt. (Range) (V. DC) | Output Voltage (V. DC) | Output Current (mA) | Efficiency (Typical) (%) |
|---|---|---|---|---|
| SS5-55400 | 5 (4.5~9) | 5 | 400 | 76 |
| SS5-65350 | 6 | 350 | 76 | |
| SS5-12S200 | 12 | 200 | 78 | |
| SS5-15S160 | 15 | 160 | 79 | |
| SS5-24S100 | 24 | 100 | 75 | |
| SS5-5D200 | ±5 | ±200 | 75 | |
| SS5-12D100 | ±12 | ±100 | 76 | |
| SS5-15D80 | ±15 | ±80 | 78 | |
| SS12-55500 | 12 (8~18) | 5 | 500 | 79 |
| SS12-65450 | 6 | 450 | 79 | |
| SS12-12S250 | 12 | 250 | 80 | |
| SS12-15S200 | 15 | 200 | 80 | |
| SS12-24S125 | 24 | 125 | 80 | |
| SS12-5D250 | ±5 | ±250 | 80 | |
| SS12-12D125 | ±12 | ±125 | 82 | |
| SS12-15D100 | ±15 | ±100 | 80 | |
| SS24-55500 | 24 (16~36) | 5 | 500 | 79 |
| SS24-65450 | 6 | 450 | 79 | |
| SS24-12S250 | 12 | 250 | 81 | |
| SS24-15S200 | 15 | 200 | 81 | |
| SS24-24S125 | 24 | 125 | 80 | |
| SS24-5D250 | ±5 | ±250 | 80 | |
| SS24-12D125 | ±12 | ±125 | 82 | |
| SS24-15D100 | ±15 | ±100 | 80 | |
| SS48-55500 | 48 (32~72) | 5 | 500 | 78 |
| SS48-65450 | 6 | 450 | 78 | |
| SS48-12S250 | 12 | 250 | 80 | |
| SS48-15S200 | 15 | 200 | 80 | |
| SS48-24S125 | 24 | 125 | 80 | |
| SS48-5D250 | ±5 | ±250 | 80 | |
| SS48-12D125 | ±12 | ±125 | 80 | |
| SS48-15D100 | ±15 | ±100 | 80 |
