ASIA ELECTRONICS IND.CO.

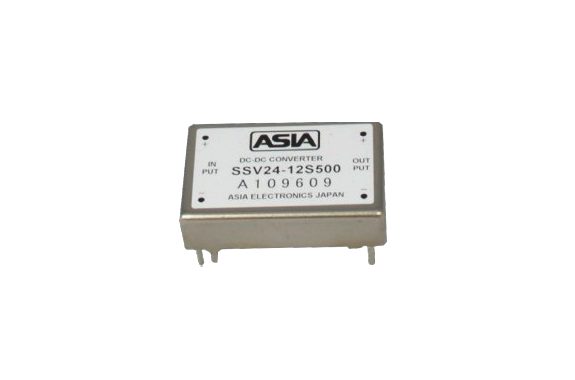

ASIA ELECTRONICS SSV SERIES DC-DC CONVERTERS
Manufacturer: ASIA ELECTRONICS
Model: SSV Series
Features
- High Efficiency 81～88%
- 8.5mm in Height
- Compact, Light Weight
- Built-in Input Filter
- Wide Input Voltage Range
- Input-Output Isolation
- Low No Load Current
- 5 Sided Metal Shielding
- High Reliability
- Operating Ambient Temperature −40℃～＋85℃
- Max. Case Temperature ＋100℃
- Conformity to RoHS2 Directive
- Not built-in aluminum and tantalum electrolytic capacitor
Specifications
◆ General Characteristics
| Input Voltage, Range | DC12, 24, 48, 100, 140V (See Table 1) (at Ta: 25℃, Full Load, Nominal Vin) |
| Output Voltage, Current | See Table 1 |
| Output Voltage Range | ±5% Adjustable |
| Efficiency | See Table 1 |
| Line Regulation | ±0.3% max. (at Vin Range) |
| Load Regulation | ±0.5% max. |
| ±1% max. | (3.3, 5V Output only) (0～100% Load) |
| Reflected Input Ripple, Noise | (5% Vin) Vp-p max. |
| Output Ripple | 40mVp-p max. |
| Output Noise | 0.5% typ. (output ±100mV) p-p max. |
| Short Circuit Protection | Built-in, Auto-restart (See Fig. 2) |
| Over Voltage Protection | 115%~140% Output Voltage |
| Temperature Coefficient | 0.02%/°C max. |
| Operating Ambient Temp. | −40°C to +85°C (See Fig. 1) |
| Max. Case Temperature | +105°C |
| Storage Temperature | −55°C to +125°C |
| Isolation Voltage | AC2000V one minute |
| (Input－Output－Case) | |
| Isolation Impedance | 100MΩ min. (at DC1000V) (Input－Output－Case) |
| Weight | 35g max. |
| Humidity | 20～95% RH |
| Shock | 490m/s² (11msec 3 directions) |
| Vibration | 10～55Hz 98m/s² (30 minutes 3 directions) |
| Surface Structure | Aluminum Case |
| MTBF | 400,000H (Ta: 25℃, 80% Load, Nominal Vin) |
| Warranty | 5 years |

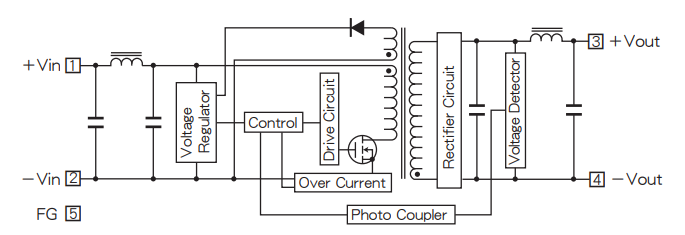

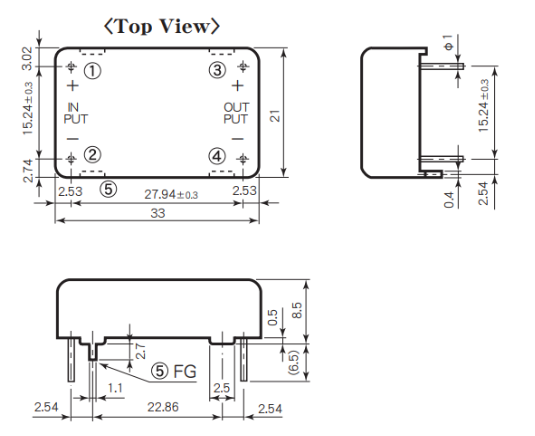

◆Pin Outs & Dimensions (±0.5mm)
| ① | + Vdc in |
| ② | − Vdc in |
| ③ | + Vdc out |
| ④ | − Vdc out |
| ⑤ | Frame Ground |

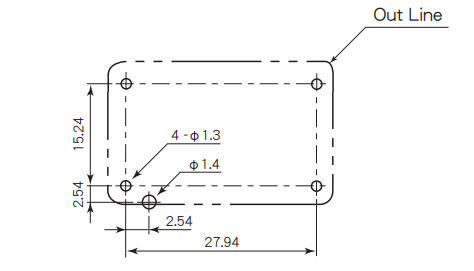

◆ Hole Configurations on PCB (Top View)
◆Selection Guide
| Model Number | Input Volt. (Range) (V. DC) | Output Voltage (V. DC) | Output Current (mA) | Efficiency (Typical) (%) |
|---|---|---|---|---|
| SSV 5 – 3.3 S 1500 | 5 (4.5～9) | 3.3 | 1500 | 81 |
| SSV 5 – 5 S 800 | 5 | 800 | 83 | |
| SSV 5 – 6 S 800 | 6 | 800 | 83 | |
| SSV 5 – 9 S 500 | 9 | 500 | 83 | |
| SSV 5 – 12 S 400 | 12 | 400 | 83 | |
| SSV 5 – 15 S 320 | 15 | 320 | 83 | |
| SSV 12 – 3.3 S 1500 | 12 (8～18) | 3.3 | 1500 | 83 |
| SSV 12 – 5 S 900 | 5 | 900 | 87 | |
| SSV 12 – 6 S 900 | 6 | 900 | 87 | |
| SSV 12 – 9 S 600 | 9 | 600 | 88 | |
| SSV 12 – 12 S 400 | 12 | 400 | 88 | |
| SSV 12 – 15 S 300 | 15 | 300 | 88 | |
| SSV 24 – 3.3 S 1500 | 24 (16～36) | 3.3 | 1500 | 83 |
| SSV 24 – 5 S 900 | 5 | 900 | 87 | |
| SSV 24 – 6 S 900 | 6 | 900 | 87 | |
| SSV 24 – 9 S 600 | 9 | 600 | 88 | |
| SSV 24 – 12 S 400 | 12 | 400 | 88 | |
| SSV 24 – 15 S 300 | 15 | 300 | 88 | |
| SSV 48 – 3.3 S 1500 | 48 (32～72) | 3.3 | 1500 | 83 |
| SSV 48 – 5 S 900 | 5 | 900 | 87 | |
| SSV 48 – 6 S 900 | 6 | 900 | 87 | |
| SSV 48 – 9 S 600 | 9 | 600 | 88 | |
| SSV 48 – 12 S 400 | 12 | 400 | 88 | |
| SSV 48 – 15 S 300 | 15 | 300 | 88 | |
| SSV 100 – 3.3 S 1500 | 100 (64～120) | 3.3 | 1500 | 83 |
| SSV 100 – 5 S 900 | 5 | 900 | 87 | |
| SSV 100 – 6 S 900 | 6 | 900 | 87 | |
| SSV 100 – 9 S 600 | 9 | 600 | 88 | |
| SSV 100 – 12 S 400 | 12 | 400 | 88 | |
| SSV 100 – 24 S 250 | 24 | 250 | 88 |
