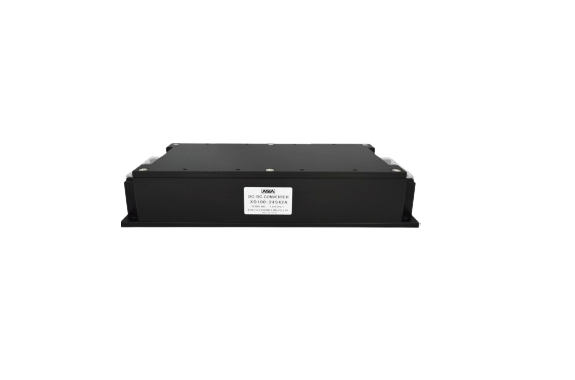

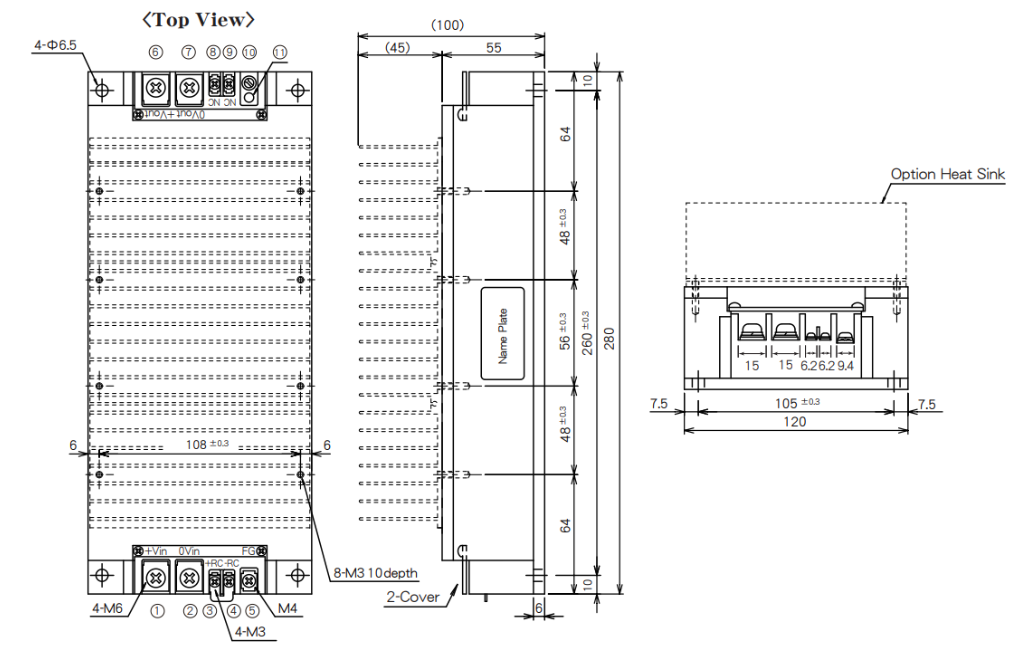

ASIA ELECTRONICS XD SERIES DC-DC CONVERTERS

Manufacturer: ASIA ELECTRONICS
Model: XD Series

Features

Input Voltage, Range	DC12, 24, 48, 100, 140V (See Table 1) (at Ta: 25℃, Full Load, Nominal Vin)
Output Voltage, Current	See Table 1
Output Voltage Range	±5% Adjustable
Efficiency	See Table 1
Line Regulation	±0.3% max. (at Vin Range)
Load Regulation	±0.5% max.
±1% max.	(3.3, 5V Output only) (0～100% Load)
Reflected Input Ripple, Noise	(5% Vin) Vp-p max.
Output Ripple	40mVp-p max.
Output Noise	0.5% typ. (output ±100mV) p-p max.
Short Circuit Protection	Built-in, Auto-restart (See Fig. 2)
Over Voltage Protection	115%~140% Output Voltage
Temperature Coefficient	0.02%/°C max.
Operating Ambient Temp.	−40°C to +85°C (See Fig. 1)
Max. Case Temperature	+105°C
Storage Temperature	−55°C to +125°C
Isolation Voltage	AC2000V one minute
	(Input－Output－Case)
Isolation Impedance	100MΩ min. (at DC1000V) (Input－Output－Case)
Weight	35g max.
Humidity	20～95% RH
Shock	490m/s² (11msec 3 directions)
Vibration	10～55Hz 98m/s² (30 minutes 3 directions)
Surface Structure	Aluminum Case
MTBF	400,000H (Ta: 25℃, 80% Load, Nominal Vin)
Warranty	5 years

Model Number	Input Voltage (Range) (V. DC)	Output Voltage (V. DC)	Output Current (A)	Efficiency (typ.) (%)
				20% Load	80% Load
XD100－24S42A	100 (70～144)	24	42	89	93
XD200－24S42A	200 (150～300)	24	42	89	93
XD300－24S42A	300 (225～450)	24	42	89	93
XD400－24S42A	400 (300～600)	24	42	89	93
XD600－24S42A	600 (420～730)	24	42	89	93
