Manufacture: Azbil Corporation
Model:  ACT

Specifications and structure of this single-function electrically operated control valve are limited for JIS10K.

• Compact, lightweight, and reliable control valve for process control of JIS10K lines
• Useful for automating semi-fixed or manual lines
• Useful for automation on a device-by-device basis

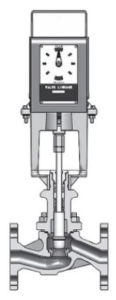

Structural drawing
Valve type	Single-Seated Control Valve
Model No.	ACT_ _ _
Size	½ in. – 3 in.
Pressure rating	JIS10K
End connection	Flange: RF,  FF
Body material	SCPH2 SCS13A
Trim material	SUS316, CoCr-alloy hardfacing
Temperature range	0 to +200 ° C
Leakage performance	Classes IV, VI
Cv range	0.4 to 100
Range ability	20:1 to 50:1
Application	Control of saturated steam, cold/hot water, etc., in low-pressure, small-diameter lines
Option	－
