Azbil AMT And HDT Three Way Control Valve
Manufacture: Azbil Corporation
Model: AMT and HDT
This three-way control valve can adjust the flow in each of three connected pipes.
- Applicable for both diverting and mixing service
- Multispring actuator uses a compact high-output diaphragm motor

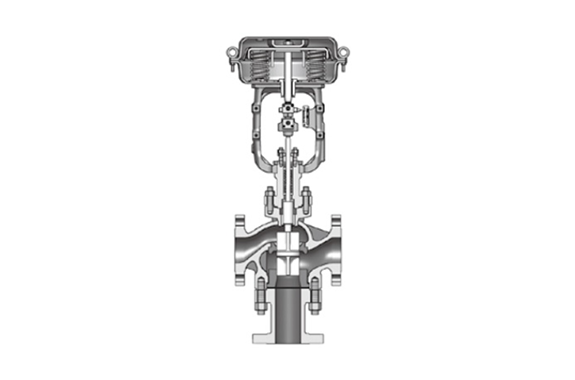

| Structural drawing |  |  |
|---|---|---|
| Valve type | Three way control valve | Three way control valve for diverting service |
| Model No. | AMT_ _ _ | HDT_ _ _ |
| Size | 1″ to 6″ | 3″ to 6″ |
| Pressure rating | ANSI/JPI 150, 300 JIS10K to 30K | ANSI/JPI 150, 300 JIS10K, 20K |
| End connection | Flanged : RF, FF | Flanged : RF, FF |
| Body material | Carbon steel Stainless steel | Carbon steel Stainless steel |
| Trim material | 316SS, 316SS with CoCr-A 316LSS, 316LSS with CoCr-A | 316SS, 316SS with CoCr-A 316LSS, 316LSS with CoCr-A |
| Temperature range | -17 to 350°C | 0 to 425°C |
| Leakage performance | Class IV | Class IV |
| Cv range | 6.3 to 360 | 70 to 270 |
| Range ability | 30:1 | 30:1 |
| Application | ・Mixing of fluid ・Diverting of low pressure fluid | Diverting of fluid |
| Option | － | － |
A three way valve that divides or mixes fluids.
The model AMT_ _ _ can be used for splitting or mixing.
model HDT_ _ _ is a three way valve for division only.
Built into heat exchangers mainly, used for temperature control.
