Azbil Corporation

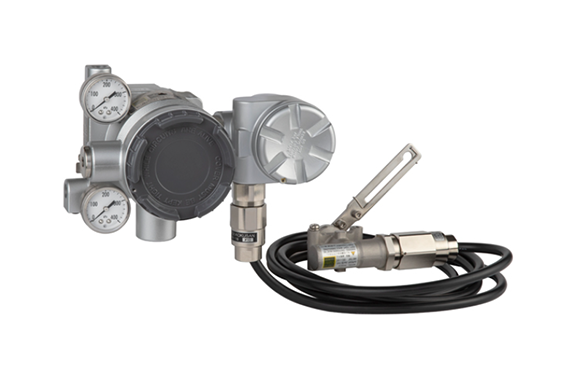

Azbil AVP20 Smart Valve Positioner 200 Series
Manufacture: Azbil Corporation
Model: AVP20
The Smart Valve Positioner 200 Series is a smart electric/pneumatic positioner with a travel sensor that is separated from the body of the positioner in order to improve vibration resistance. Great for installation environments with high temperatures, high location, etc.
- Compatible with the valves of global vendors, no matter what valve you choose to install
- Built-in auto-setup for easy adjustment
- Equipped with a forced full close function that does not shift the zero point
- Equipped with diagnostic parameters for early detection of control valve abnormalities
| Picture | |
|---|---|
| Positioner type | Smart Valve Positioner 200 Series |
| Model No. | AVP200/201/202 |
| Input signal | 4 to 20mADC, split range setting available |
| Stroke range | 14.3 to 100 mm Stroke (Feedback Lever Angle ±4° to ±20°) |
| Air supply pressure | 140 to 700kPa {1.4 to 7.0kgf/cm²} |
| Ambient temperature | -40 to +80°C |
| Features |
|
