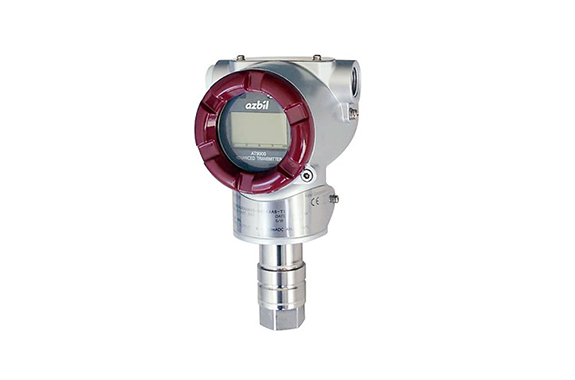

Azbil GTX60G/ GTX71G In-line Gauge Pressure Transmitters

Manufacturer: Azbil Corporation
Model: GTX60G/ GTX71G

Feature

This microprocessor-based smart transmitter offers excellent stability. Moreover, it measures pressure in gases, liquids, steam, and liquid levels.
For maximum safety, the device is IEC 61508-compliant and SIL2-certified. Additionally, it ensures long-term stability with only±0.1 % zero drift over ten years. Furthermore, it delivers a high-speed response within 100 ms for demanding turbine applications.

Summary

Advanced Transmitter Gauge Pressure Transmitters (Model GTX_ _G) measure the pressure of gases, liquids, and steam, and also monitor tank pressure. ±0.1 %
The use of directly mountable devices helps to cut installation and maintenance costs related to the impulse line and helps to keep equipment compact.
These transmitters achieve high accuracy of ±0.04 % and long-term reliability (zero drift of only ±0.1 % over 10 years), greatly reducing calibration work after installation.

ModelGTX60GGTX71G
Measurement span17.5～3500 kPa0.7～14 MPa
Setting range-100～3500 kPa-0.1～14 MPa
Reference accuracy±0.04%±0.15%
Fill fluidSilicone oil (general purpose models)
Waterproof and dust-proof constructionIEC IP67
Explosion-proof constructionKOSHA flameproof
FM explosion proof, intrinsic safe and Nonincendive
ATEX/NEPSI/IECEx flameproof, intrinsic safe and Type n
Wetted materialSUS316 (diaphragm SUS316L)
Power17.9～42V DC
Output signal4 to 20 mA DC (SFN communication)
4 to 20 mA DC (HART® communication)
Process connectionsMale: 1/2NPT, R1/2, G1/2, M20x1.5
Female: 1/2NPT, Rc1/2Male:1/2
