Manufacture: Azbil Corporation
Model: SVX10

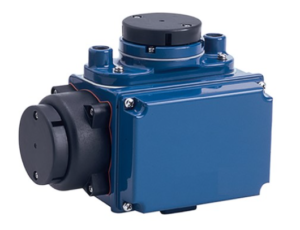

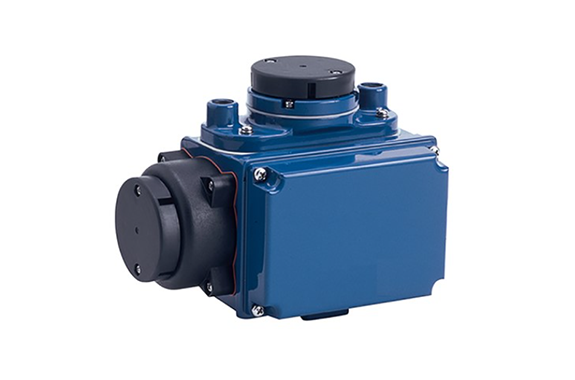

The smart valve positioner for rotary valves can be installed compactly on the upper part of the valve shaft, allowing flexible adaptation to the installation environment.

• Global valve vendors, no matter what valve you choose to install
• Built-in auto-setup for easy adjustment
• Equipped with a forced full close function that does not shift the zero point
• Equipped with control valve diagnostic parameters for early detection of control valve abnormalities

Positioner type	Smart Valve positioner for rotary valve
Model No.	SVX100, SVX102
Input signal	4 to 20mADC, split range setting available
Stroke range	to 90° (Rotary)
Air supply pressure	140 to 700kPa
Ambient temperature	-40 to +80°C
Features	Single action/Double action Auto set-up Communication : HART® Easy zero/span adjustments
