Manufacture: Azbil Corporation
Model: VDD
Compact and lightweight control valve suitable for slurry and corrosive material handling service.

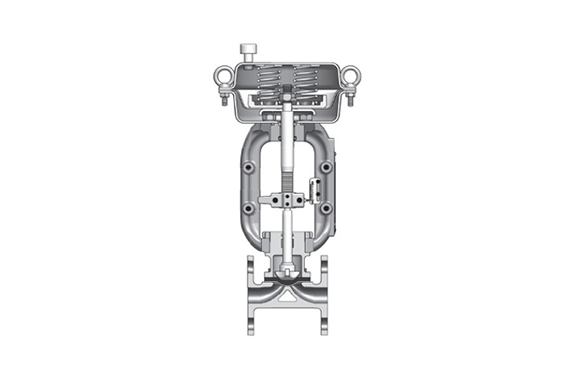

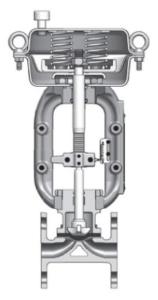

| Structural drawing |  |
|---|---|
| Valve type | Weir diaphragm control valve |
| Model No. | VDD_ _ _ |
| Size | 1/2″ to 4″ |
| Pressure rating | ANSI 150 JIS10K |
| End connection | Flanged : RF (equivalent), FF |
| Body material | Body : FC200, lining : hard natural rubber, chloroprene Body : FCD-S, lining : PFA, ETFE Body : SCS13 |
| Trim material | Diaphragm : natural rubber, chloroprene, PTFE, EPDM |
| Temperature range | -5 to 140°C |
| Leakage performance | Class VI |
| Cv range | 3 to 295 |
| Range ability | 20:1 |
| Application | corrosion service as acid and alkaline Slurry service |
| Option | – |
Diaphragm control valve with linings of chloroprene rubber, glass, PFA, etc.
