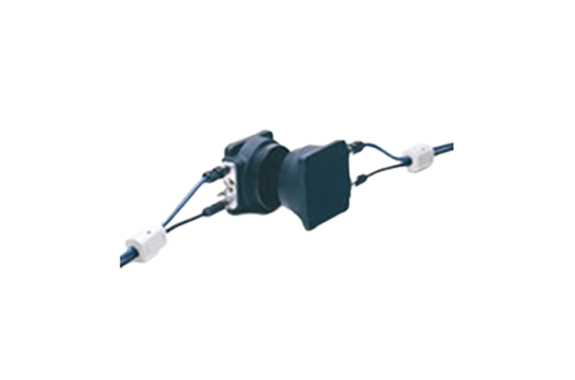

B＆Plus Remote Coupler System
Manufacturer: B＆PLUS K.K.
Features
- Identifying a workpiece, starting a solenoid valve and monitoring move of cylinders on a pallet.
- Transmission of the inspection data by RS-232C
Specifications
Switch signal
| Drive voltage/Current | No. of signals | Max. Distance | Type code | |||
|---|---|---|---|---|---|---|
| Remote part | Base part | |||||
| 24V DC/300mA | 4＋4 | 10mm | Remote head | RHPT8-8010□-C3- | Base head | RHPE8-8010□-C3-PU-_ _ |
| 24V DC/2A | 8＋8 | 9mm | Remote amplifier | RC08T-011□-000 | Base amplifiler | RCH08E-211-PU-_ _ |
| Remote head | RCH08T-211-PU-_ _ | Base amplifiler | RC08E-011□-000 | |||
| 24V DC/2A | 64＋32 | 9mm | Remote amplifier | RL64T-344□-000 | Base head | RCH08E-211-PU-_ _ |
| RL64T-345□-000 | ||||||
| Remote head | RCH08T-211-PU-_ _ | Base amplifiler | RL64E-333□-000 | |||
| RL64EA-355DN-000 | ||||||
| RL64E-366CL-000 | ||||||
| RL64E-366EI-000 | ||||||
| Input unit | RLX08-322□ | |||||
| Output unit | RLY04-322□ | |||||
RS-232C type
| Drive Voltage/Current | Max. Distance | Type code | |
|---|---|---|---|
| Remote part | Base part | ||
| 24V DC/1A | 10mm | RCD11T-211-PU-_ _ | RCD11E-211-PU-_ _ |
CC-Link type
| Drive Voltage/Current | Max. Distance | Type code | |
|---|---|---|---|
| Remote part | Base part | ||
| 24V DC/2A | 5mm | RCD22T-211-CLC | RCD22E-211-CLC |
Device Net type
| Drive Voltage/Current | Max. Distance | Type code | |
|---|---|---|---|
| Remote part | Base part | ||
| 24V DC/2A | 5mm | RCD33T-211-DNC | RCD33E-211-DNC |
Profibus DP type
| Drive Voltage/Current | Max. Distance | Type code | |
|---|---|---|---|
| Remote part | Base part | ||
| 24V DC/2A | 5mm | RCD44T-211-PBC | RCD44E-211-PBC |
IO-Link signal type
| Drive Voltage/Current | Max. Distance | Type code | |
|---|---|---|---|
| Remote part | Base part | ||
| 24V DC/2A | 5mm | RCD55T-211-IOC | RCD55E-211-IOC |
