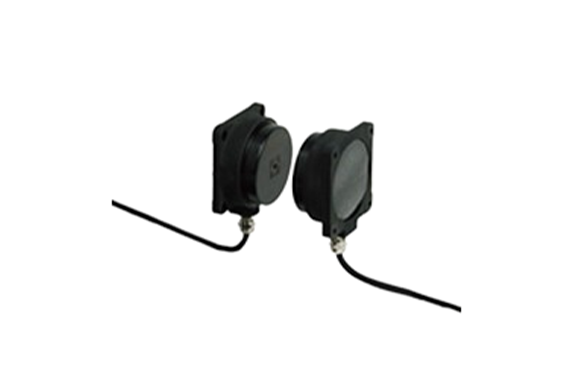

B＆Plus Wireless Power Supply/Charging System
Manufacturer: B＆PLUS K.K.
Features
- Wireless power supply to moving unit.
- Battery charge.
Specifications
Power supply type
| Pallarel | ||||
|---|---|---|---|---|
| Drive voltage/current | Distance max. | Size | Type code | |
| Remote part | Base part | |||
| 12V DC/2.5A | 10mm | 80×80 | RVT-210-102-PU-_ _ | RVE-210-2-PU-_ _ |
| 24V DC/2A | 9mm | 90×90 | RVT-211-22-PU-_ _ | RVE-211-2-PU-_ _ |
| 24V DC/2A | 6mm | Φ116 | Amplifier：RVT-244-202-PU_ _ Head：RVHT-R01-CP_ _ | Amplifier：RVE-244-2-PU-_ _ Head：RVHE-R01-CP_ _ |
| 24V DC/1A | 3mm | 45×45 | RVT-422-201-PU-_ _ | RVE-422-2-PU-_ _ |
| Over rap | ||||
|---|---|---|---|---|
| Drive voltage/current | Distance max. | Size | Type code | |
| Remote part | Base part | |||
| 24V DC/1A | 10mm | M30 | RVTI-030-21-PU-_ _ | RVEI-030-2-PU-_ _ |
Charging type
| Pallarel | ||||||
|---|---|---|---|---|---|---|
| Charging voltage/current | Distance max. | Size | Type code | |||
| Remote part | Base part | |||||
| Chaging unit | Passive Head | Active Head | Power supply yunit | |||
| 30W/14.4V | 10mm | 80×80 | RVT-210-502-PU-_ _ | RVE-210-2-PU-_ _ | ||
| 120W/29.0V | 10mm | 160×110 | RVT-433-404-PU-_ _ | RVE-433-2-PU-_ _ | ||
| 120W/14.8V | 10mm | 160×110 | RVT-433-508-PU-_ _ | RVE-433-2-PU-_ _ | ||
| 210W/7A | 10mm | Head： 140×100 | RSC210-PB24 | RCS240PH | RCS240AH | RCS240-AC1 |
| 30W/28.9V Lithium-ion Battery | 20mm | 80 x 80 | RVT-233-401LI-PU-_ _ | RVE-233-2-PU-_ _ | ||
| 30W/28.9V Lithium-ion Battery for Maxell | 20mm | Head： 85×85 | RCS30-LI24 | RCS30-TH01 | RCS30-EH01 | RCS48-DC1 |
| 600W/48V | 20mm or 20…40mm | Head：170×100, 254×125 | RCS600-CA48 | RCS600-CH | RCS600-AH | RCS600-AC |
| 600W/24V | 20mm or 20…40mm | Head：170×100, 254×125 | RCS600-CA24 | RCS600-CH | RCS600-AH | RCS600-AC |
| 600W/12V | 20mm or 20…40mm | Head：170×100, 254×125 | RCS600-CA12 | RCS600-CH | RCS600-AH | RCS600-AC |
There are various types available in terms of shape and function. Please feel free to contact us.
| Pallarel | ||||||
|---|---|---|---|---|---|---|
| Charging voltage/current | Distance max. | Size | Type code | |||
| Remote part | Base part | |||||
| Chaging unit | Passive Head | Active Head | Power supply yunit | |||
| 1000W/48V
| 0…15mm | Head : 210x150x45 | RCS1000-CA48 | RCS1000-CH | RCS1000-AH | RCS1000-AC |
| 20…40mm | Head : 250x150x40 | RCS1000-CA48 | RCS1000-CH-L | RCS1000-AH-L | RCS1000-AC-L | |
| 1000W/24V | 0…15mm | Head : 210x150x45 | RCS1000-CA24 | RCS1000-CH | RCS1000-AH | RCS1000-AC |
| 20…40mm | Head : 250x150x40 | RCS1000-CA24 | RCS1000-CH-L | RCS1000-AH-L | RCS1000-AC-L | |
| 2000W/48V | It varies depending on the conditions. | Head : 250x150x40 | RCS2000-CA-48 | RCS2000-CH-B48 | RCS2000-AH-B48 | RCS2000-AC-B48 |
| 2000W/24V | It varies depending on the conditions. | Head : 250x150x40 | RCS2000-CA-24 | RCS2000-CH | RCS2000-AH | RCS2000-AC-B24 |
There are various types available in terms of shape and function. Please feel free to contact us.
