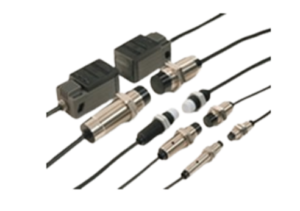

B and Plus Remote Sensor System

Manufacturer: B＆PLUS K.K.

Features

Work confirmation of the moving part
Temperature confirmation of mold

Specifications

Switch signal

DC 3-Wire Detector type

The remote system supplies power to the standard DC 3-wire detector, and at the same time, it transmits the detected signals, so it maintains stable operation while enhancing communication efficiency and overall reliability.

No. of signalsMax.
Distance		SizeType code
TransmitterOutput sensor
1 signal4mmM18RPT-1804□-PU-_ _RPE-1804□-PU-_ _
8mmM30RPT-3008□-PU-_ _RPE-3008□-PU-_ _
4 signals3mmM18RPTA-1803-PU-_ _RPEA-1803□-PU-_ _
5mmM30RPTA-3005-PU-_ _RPEA-3005□-PU-_ _
8 signals5mmM30RGPT-3005-V1215-PU-_ _RGPE-3005-V1215□-PU-_ _
8mm40×40RGPT-4008-V1220A/B-PU-_ _RGPE-4008-V1220□A/B-PU-_ _
22mm80×80RPTA-8015-PU-_ _RPEA-8015□-PU-_ _
12mm90×90RGPT-9012-V2430-PU-_ _RGPE-9012-V2430□-PU-_ _
12 signals5mm45×45RS12T-422-PU-_ _RS12E-422□-PU-_ _
24 signals10mm55×55RS24T-424-PU-_ _RS24E-424-PU-_ _
No.of
signals		Max.
Distance		SizeType code
Remote
terminal		Transmission headOutput head
8 signals8mmM30RS8TA-222P-S04RSH8T-030-PU-CPRSH8E-030□-PU_ _
RS8T-222P-S04
16 signals8mmM30RS16TA-211P-S04RSH16T-030-PU-CPRSH16E-030□-PU_ _
RS16T-211P-S04
5mmM30RS16TB-211P-S04RSH16TB-030-PU-CPRSH16EB-030□-PU_ _
DC 2-Wire Detector type

The remote system supplies power to the standard DC 2-wire detector, and at the same time, it also transmits the detected signals, so it enables smooth operation while ensuring efficient and reliable signal transmission.

General type
No. of SignalsMax. DistanceSizeType code
TransmitterOutput sensor
1 signal2mmM12RPT-1202D-PU-_ _RPE-1202□-PU-_ _
4mmM18RPT-1804D-PU-_ _RPE-1804□-PU-_ _
8mmM30RPT-3008D-PU-_ _RPE-3008□-PU-_ _
1.5mm25×50RPT-F0D-PU-_ _RPE-F0□-PU-_ _
2 signals4mmM18RPT2-1804D-PU-_ _RPE2-1804□-PU-_ _
5mmM30RPT2-3005D-PU-_RPE2-3005□-PU-_ _
4 signals3mmM18RPT4-1803D-PU-_ _RPE4-1803□-PU-_ _
5mmM30RPT4-3005D-PU-_ _RPE4-3005□-PU-_ _
8 signals3mmM18RPT8-1803D-PU-_ _RPE8-1800□-PU-_ _
7mmM30RPT8-3007D-PU-_ _RPE8-3000□-PU-_ _
15 signals5mmM30RPT15-3005D-PU-_ _RPE15-3000□-PU-_ _
High temperture type
8 signals3mmM18RS08TA-018D-PU-_ _RS08EA-018□-PU-_ _
7mmM30RS08TA-030D-PU-_ _RS08EA-030□-PU-_ _
No. of SignalsMax. DistanceSizeType code
Remote terminalTransmission headOutput head
8 signals8mmM30RS8TA-222P-S04RSH8T-030-PU-CPRSH8E-030□-PU-_ _
RS8T-222P-S04
16 signals8mmM30RS16TA-211D-S04RSH16T-030-PU-CPRSH16E-030□-PU-_ _
RS16T-211D-S04
DC 2-wire / DC 3-wire common specification

Commercially available DC 2-wire / DC 3-wire type sensor can be used together

General type
No. of SignalsMax.DistanceSizeType code
TransmitterOutput sensor
12 signals5mm45×45RS12T□-422-PU-_ _RS12E-422□-PU-_ _
Output sensor/Transmitter integrated type
No. of SignalsMax.DistanceSizeType code
Drive voltage/
Max drive current		Output sensor
12 signals5mm45×4512V / 150mARS12-422□-ASET



Exclusive Detector type

Remote Sensor which uses the exclusive proximity sensor RXD.

Applicable
sensor		No.of signalsMax. DistanceSizeType code
TransmitterOutput sensor
Exclusive detector/
RXD series		1 signal1mmM8RST-0801-PU-_ _RSE-08012□-PU-_ _
2mmM12RXT-1202-PU-_ _RXE-1202□-PU-_ _
2mmM12RST-1202-PU-_ _
5mmM18RXT-1805-PU-_ _RXE-1805□-PU-_ _
8 signals5mmM18RXT8-1805-PU-_ _RXE8-1800□-PU-_ _
10mmM30RXT8-3010-PU-_ _RXE8-3000□-PU-_ _
Exclusive proximity sesnsor
Product rangeType codeDistanceSizeApplicable Transmitter
RFD series
DC 2-Wire type
（LED indication）		RFD-0801-PU-_ _1.5mmM8RPT-xxxxD
RFD-1202-PU-_ _2mmM12RPTx-xxxxD
RFD-1805-PU-_ _5mmM18
RFD-3010-PU-_ _10mmM30
RXD series
Exclusive detector type
（Not LED indication）		RXD-0801-PU-_ _1.5mmM8RXT-xxxx
RXD-1202-PU-_ _2mmM12RXT8-xxxx
RXD-1805-PU-_ _5mmM18
RXD-3010-PU-_ _10mmM30
Terminal BOX
Product rangeType codeNotes

Standard type

– A box for factory auto mation system is used as the housing.
– Protection class; IP 65

4 detectorsRPK-2102DC 3-wire and 2-wire sensor
8 detectorsRPK-2101DC 3-wire and 2-wire sensor
RPK-2103DC 3-wire and 2-wire sensor
RFK-3101RPT8・RXT8

Waterproof type

– Original ” α -box” which has a round screw lid.
– Protection class; IP67.

8 detectorsRPK-A098-02DC 3-wire and 2-wire sensor
RPK-A098-03DC 3-wire and 2-wire sensor
RPK-B148-02DC 3-wire and 2-wire sensor
15 detectorsRPK-B148-03DC 3-wire and 2-wire sensor
8 detectorsRFK-A098-02RPT8・RXT8
RFK-A098-03RPT8・RXT8

Connector type

– Detectors can be con nected to Terminal Box with connectors.
– Protection class; IP 67.

4 detectorsRPK-4C01-□DC 3-wire and 2-wire sensor
8 detectorsRPK-8C01-□DC 3-wire and 2-wire sensor
RPK-8C01L-□RGPT-xxxx用
RFK-8C01RXT8

Analog signal

Thermocouple type

Transmit the temperature measuring signal of thermocouple K/J type and output it as 4…20mA.

Sensor typeMeasuring rangeNo.of
Signals		Max.
Distance		SizeType Code
TransmitterOutput sensor
K0・・・1000℃1 signal4mmM18RTT-1804-K100RTE-1804E-PU-_ _
0・・・300℃2 signals6mmM30RS02T-030-K300RS02E-030E-PU-_ _
0・・・1000℃2 signals4mmM18RS02T-018-K1000RS02E-018E-PU-_ _
0・・・300℃2 signals4mmM18RS02T-018-K300
J0・・・300℃2 signals4mmM18RS02T-018-J300
Thermocouple specification ring shape

Transfer measurement data of thermocouple K or J type

Sensor typeMeasuring rangeNo.of
Signals		Max.
Distance		SizeType Code
TransmitterOutput sensor
K0・・・1000℃2 signal8mmΦ116mmRS02T-R01-K1000RS02E-R01E-PU-_ _
0・・・300℃2 signals8mmΦ116mmRS02T-R01-K300RS02E-R01E-PU-_ _
0・・・300℃2 signals15mmΦ175mmRS02T-R03-K300RS02E-R03E-PU-_ _
J0・・・300℃2 signals8mmΦ116mmRS02T-R01-J300RS02E-R01E-PU-_ _
Resistance thermometer type

Transmit the temperature measuring signal of platinum resistance temperature detector Pt100 and output it as 4…20mA.

Sensor typeMeasuring rangeNo.of
Signals		Max.
Distance		SizeType Code
TransmitterOutput sensor
pt1000・・・100℃1 signal4mmM18RTT-1804-PT1B10-PU-_ _RTE-1804E-PU-_ _
0・・・200℃RTT-1804-PT1B20-PU-_ _
0・・・300℃RTT-1804-PT1B30-PU-_ _
Temperature sensor type

Transmit the temperature measuring signal of termocouple　(J/K/E/N/R/S/T/B), resistance temperature and thermister.

Compact shape heads and ring shape heads are avairable.

The output signal from the output head is RS-232C.

The current output amplifier RS801E-234E is prepared for current output type.

Sensor typeMeasuring rangeNo.of
Signals		Max.
Distance		SizeType Code
Trans.
Amplifier		TransmitterOutput sensor
Temperature sensorsCompact

shape

termocouple 8

resistance themometer 2

thermister 2

3mm55×55RS080Ｔ-233RSH080T-422-CNRSH08E-422R-CN
Ring

shape

6mmφ116RSH08T-R01-CNRSH08E-R01R-CN
Load cell type

Transmit output signal of compression load cell and output it as 4…20mA.

Sensor typeMeasuring rangeNo.of
Signals		Max.
Distance		SizeType Code
TransmitterOutput sensor
ｍV/V1mV/V1 signal4mmM18RNT-1804-LC10-PU-_ _RTE-1804E-PU-_ _
1.5mV/VRNT-1804-LC15-PU-_ _
2mV/VRNT-1804-LC20-PU-_ _
Analog sensor type

Transmit output signal of analog sensor and output it as 0…10V.

Sensor typeMeasuring rangeNo.of
Signals		Max.
Distance		SizeType Code
TransmitterOutput sensor
0・・・10V0・・・10V1 signal2.5mmM18RNT-1803-VS10-PU-_ _RNE-1803A-PU-_ _
