Manufacturer: BF Kogyo Kaisha, Ltd.
Model: CD Series
Features

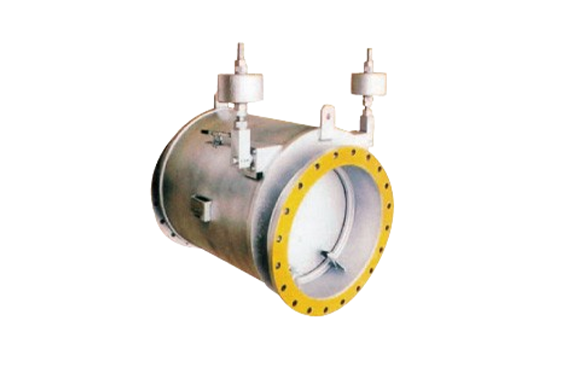

- A steel plate damper available with either round or square pipe connection ends.
- This non-return gravity damper is mainly used in nuclear power facilities for ventilation and air conditioner outlets as well as for transfer.
- It is equipped with an easily adjustable balance weight to balance the impeller blade gravity and operates reliably on even a slight pressure difference.

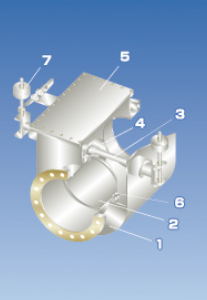

- Flange
- Disc
- Shaft
- Lever
- Bonnet
- Seat
- Counter weight
Specifications
| Size | 100A～2400A |
|---|
| Working pressure | ～0.05MPa |
|---|
| Working temperature | ～150℃ |
|---|
| Flanges | JIS、ANSI、DIN、AS、BS、Special |
|---|
Standard materials（ JIS code）
| Body | SS400、SUS304、SUS316、SUS316L |
|---|
| Disc | SS400、SUS304、SUS316、SUS316L |
|---|
| Shaft | SUS403、SUS304、SUS316、SUS316L |
|---|
Standard test pressure
| Body shell | Fluid pressure×1.5 |
|---|
