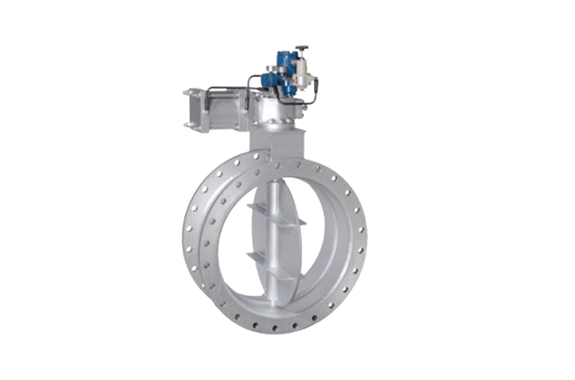

BF Kogyo Kaisha SD Series Butterfly Damper
Manufacturer: BF Kogyo Kaisha, Ltd.
Model: SD Series
Features
- This is a butterfly damper type featuring a steel plate welded structure.
- It is used for ON-OFF and control of the flow of various gases and air.
- As there is no need for the wooden or metal molds normally used in the manufacturing process, a louver damper can also be fabricated.

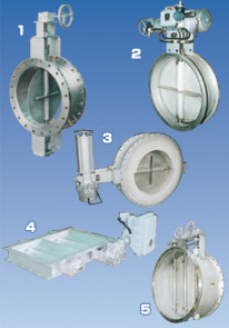

- SD type:open type
- SDs type:low leakage type
- SDs-AS type:high temperature type
- Angular louvers type:low leakage type
- Circular louvers type:low leakage type
Specifications
| Size | 200A～2400A（Square type is also a vailable） |
|---|---|
| Materials | SS400、S-Ten、SUS304、SUS316、SUS316L、SUS310S |
| Disc sheet | Louvers single, double, multiple |
| Working pressure | MAX 0.05MPa |
| Working temperature | MAX 900℃ |
| Form | Wafer and Flange（Steel, JIS2K, 5K, etc） |
