Manufacturer: BIG DAISHOWA—Americas

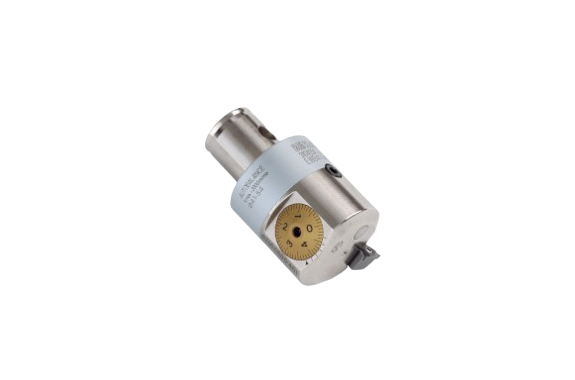

Model: EWB 32-105

Features

• The tool is absolutely free from any movement with the combined clamping of the insert holder and tool carrier.
• It features a high-quality coated tool body, providing complete protection from corrosion.
• Through-tool coolant supply to the cutting edge ensures optimal cooling.
• It is designed for cutting speeds of up to 6,600 SFM.

◆Self-Balance Over the Entire Adjustment Range

• Autobalance Boring Heads, Series 310 EWB, maintain perfect balance throughout the working range due to the integrated counter-balance mechanism.
• Even at maximum speeds, balanced tools guarantee vibration-free boring, resulting in increased productivity and high precision.

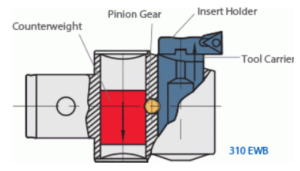

◆Self-Balancing Mechanism

• A counterweight built into the boring head compensates for the imbalance caused by the movement of the tool carrier.
•
