Manufacturer: BIG DAISHOWA—Americas

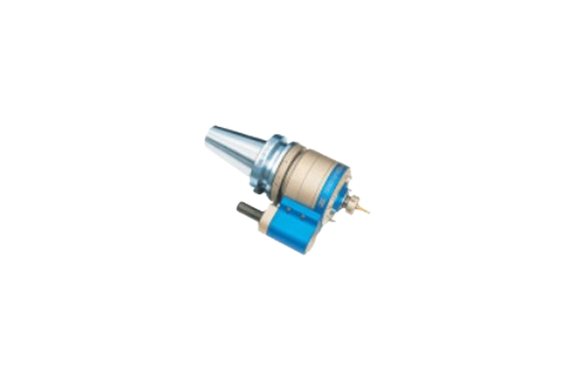

Model: High Spindle

Features

• Spindle Speed Multiplication: Multiply spindle speed by 4, 5, or 6 times, enhancing performance in drilling and end milling operations.
• Reduced Spindle Load: Diminish excessive motor and bearing loads, extending the lifespan of the machine spindle.
• Enhanced Coolant Delivery: Adaptable coolant nozzles ensure optimal coolant delivery to the cutting edge, improving tool performance and efficiency.

Specifications

• HIGH SPINDLE is an innovative gear-driven system that enhances the performance of existing machining centers by multiplying spindle speed 4, 5, or 6 times, improving both drilling and end milling operations.

◆Reinforced Gear Driving System for Smooth Operation

• HIGH SPINDLE has been evolving since 1970, featuring planetary gears that ensure smooth operation with minimal heat generation and high torque transmission.

◆Reduction of Load on Machine Spindle

• Prolong the life of your machine spindle—HIGH SPINDLE diminishes excessive motor and bearing loads, crucial for continuous high-speed operation.

◆1.7 Times Increased Rigidity

• Experience enhanced rigidity with a larger diameter body, spindle equipped with double angular contact bearings, and a reinforced locating pin assembly.

◆Multi-Directional Coolant Supply

• Experience adaptable universal coolant nozzles capable of adjusting to the cutting tool length, ensuring optimal coolant delivery to the cutting edge for enhanced performance.

◆Pinpoint Coolant Jet for Shorter Cutting Tools

• With a 1/8 pipe tap thread, our HIGH SPINDLE accommodates various coolant-jet nozzles, providing precise coolant delivery to the cutting edge of shorter tools (BCV/BBT taper models only).
