Manufacturer: BIG DAISHOWA—Americas
Model: Reductions And Extensions

Features

• BIG KAISER’s modular CK system provides the flexibility to assemble the perfect setup for almost any application.

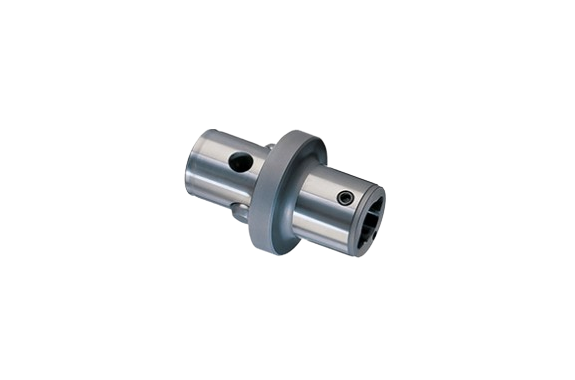

• Reductions and extensions are a key component of the modular CK system’s flexibility.
• Reductions and extensions allow connections between different CK sizes within the system, enabling a wide variety of tool combinations.
• Additionally, many of these components are available in steel or lightweight aluminum.
• The system offers high interchange accuracy, with a maximum radial change error of 0.002 mm.
• It provides the possibility to avoid or overcome interfering edges.
• Lightweight aluminum options are available for reduced weight.

◆ Extension steel

• The extension steel is available in CKB1-CKB7 sizes.
• It features coolant-through capability for enhanced cooling and chip evacuation.

◆Smart Damper Extensions

◆Reduction steel

• The reduction steel is available in various sizes.
• It features coolant-through capability for enhanced cooling and chip evacuation.

◆Coupling CKN

• The Coupling CKN is available in CKN6 and CKN7 sizes.
• It features coolant-through capability for improved cooling and chip evacuation.

◆ Extension Aluminum CKN

• The Extension Aluminum CKN is available in CKN6 and CKN7 sizes.
• It features coolant-through capability for enhanced cooling and chip evacuation.

◆ Reduction Aluminum CKN
