Manufacturer: BIG DAISHOWA—Americas

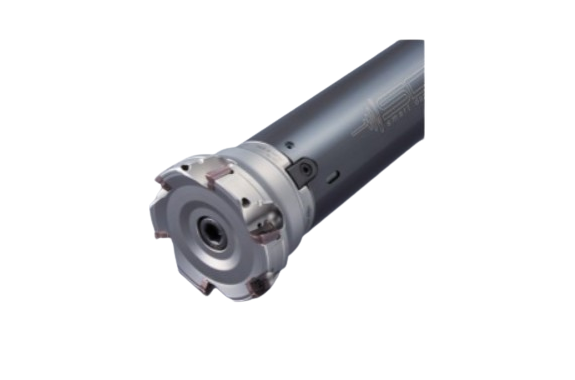

Model: Smart Damper Tool for Milling

Features

• Consequently, instantaneous damping of chatter reduces vibration immediately during cutting.
• Coolant through pilot design ensures efficient cooling directly at the cutting point
• Modular construction allows flexible setup and easy tool replacement

Specifications

◆ Integrated Damping System

• The Smart Damper tool for milling uses a passive damping mechanism placed near the cutting edge
• It counteracts vibrations through high resonance friction action
• The patent-pending system minimizes high-frequency oscillations
• It effectively absorbs vibration to improve machining performance
• Therefore, it enables higher machining accuracy during milling operations.

◆ Anti-vibration Tool

• In particular, overhang, or length-to-diameter ratio, is a key factor in vibration during machining.
• Longer overhangs increase fragility and the risk of vibration issues
• This challenge is common in die and mold, aerospace, automobile, and oil and gas industries
• Smart Damper tools place damping elements close to the cutting point.
• The modular design allows users to configure standard shanks into custom tools over 16 inches long.
• The system maintains damping near the tool to effectively control vibration in long-overhang setups.
