Manufacturer: BIG DAISHOWA—Americas
Model: Stabilizer System

Features

• It is compatible with standard UNILOCK SYSTEM 40 chucks, manual 5-axis clamping units, and the UNIFLEX clamping system.
• The fine adjustment unit allows you to adjust the position of parts as needed.

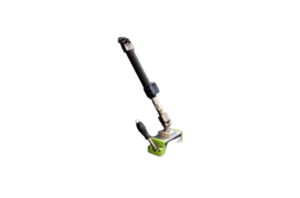

• Choose the magnetic base option.
• Choose the tab/flange gripper option.
• You can select options for direct ball attachment with no location requirement.
• The system includes 5 fixed-length extensions.
• It also includes 2 adjustable-length bases.

Specifications

◆ General Characteristics

• If you’re backing off feeds and speeds to achieve finishes, there’s a good chance the part is not completely stable.
• One option to increase stability is to add an extra point of contact using a temporary locating feature or weld tabs and brackets.
• However, BIG DAISHOWA’s zero-point, UNILOCK stabilizer system easily adjusts to any new part, making machining more efficient and cost-effective.

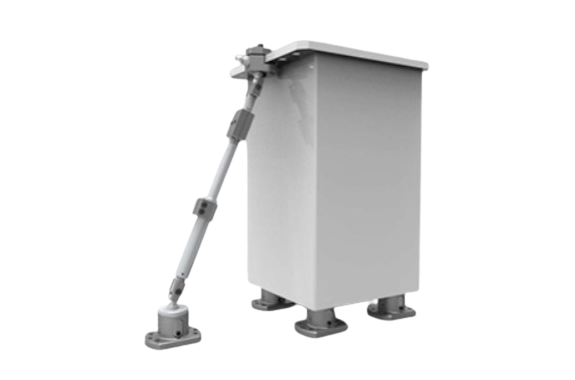

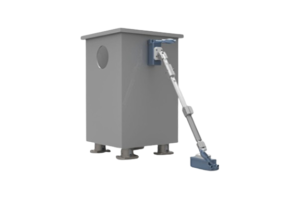

• The system provides lateral support for tall parts during machining, welding, or assembly processes.
• This support allows for the transfer of loads down to the table or base.
