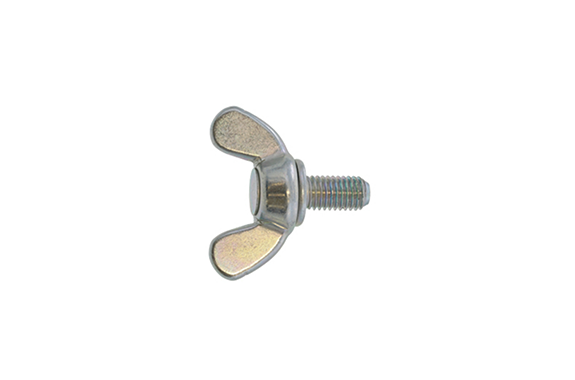

C0-0040 Cold Forming Wing Bolt Type 1
Model: C0-0040
Dia range:M6～M12
Length range:10～50
Iron (or standard).
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…

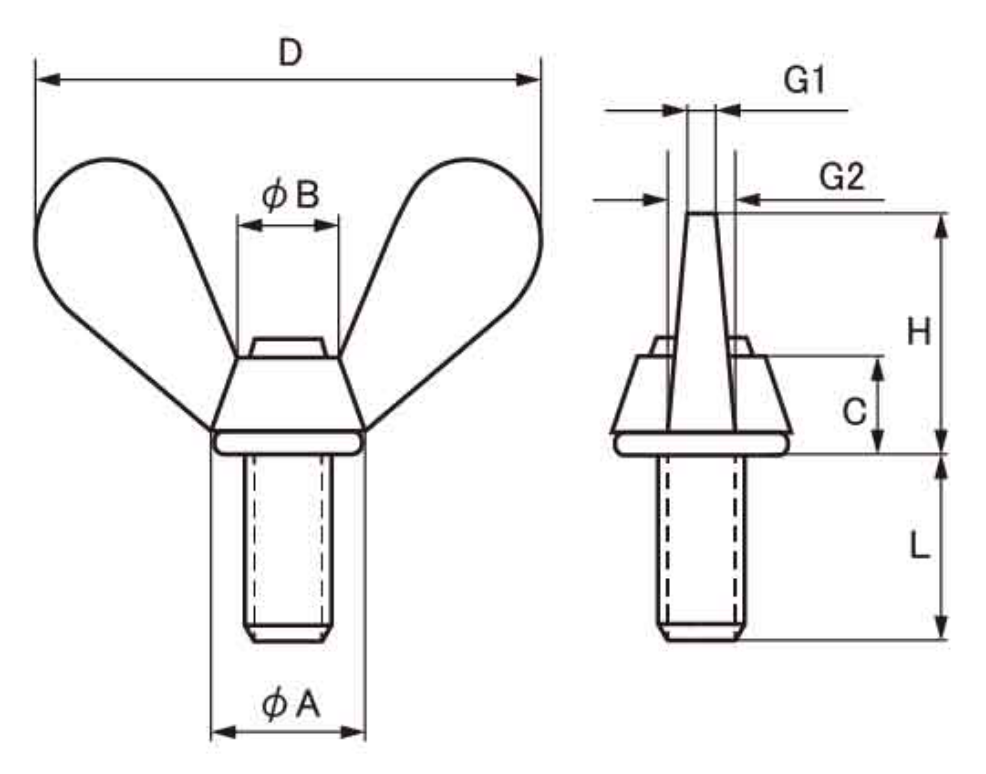

| Thread Diameter | A | B | C | D | H | G 1 | G2 |
|---|---|---|---|---|---|---|---|
| M6 | 10.5 | 9 | 6 | 32 | 16 | 4.5 | 55 |
| M8 | 14 | 12 | 8 | 40 | 20 | 5.5 | 65 |
| M 10 | 18 | 15 | 10 | 50 | 25 | 7 | 8 |
